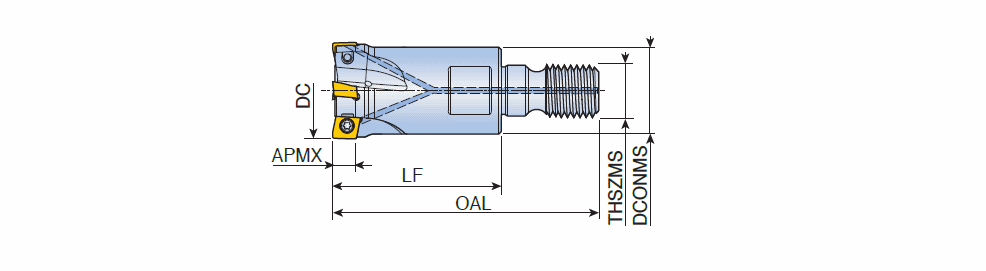

2P-TE90-M-05 : 90° Modular end mills with T-FLEXTEC adaptation & high positive helical cutting edges of 2PKT inserts

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX			S1	RMPX	KAPR	HAND	Arbor	PD	Insert	ClssID	MIID	CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
2P-TE90-212-M06-05	MODULAR ~	12.00	2	11.00	23.00	37.50	M06	4.70	O	0.01	5.00~	7.50~	90.0~	~	~	RF ~	CMP-2P05 ~	71E01A05D27A8 ~	2PKT 050304R-M	SAI ~	02 ~	FF ~	IS$$1730808543545830 ~	23.00~	0~	2~	2~	6142866
2P-TE90-213-M06-05	MODULAR ~	13.00	2	11.00	23.00	37.50	M06	4.70	O	0.02	5.00~	7.50~	90.0~	~	~	RF ~	CMP-2P05 ~	71E01A05D27A8 ~	2PKT 050304R-M	SAI ~	02 ~	FF ~	IS$$1730808543545830 ~	23.00~	0~	2~	2~	6165593
2P-TE90-316-M08-05	MODULAR ~	16.00	3	13.00	23.00	40.50	M08	4.70	O	0.03	5.00~	4.40~	90.0~	~	~	RF ~	CMP-2P05 ~	71E01A05D27A8 ~	2PKT 050304R-M	SAI ~	02 ~	FF ~	IS$$1730808543545830 ~	23.00~	0~	3~	3~	6142867
2P-TE90-318-M08-05	MODULAR ~	18.00	3	13.00	23.00	40.50	M08	4.70	O	0.03	5.00~	4.40~	90.0~	~	~	RF ~	CMP-2P05 ~	71E01A05D27A8 ~	2PKT 050304R-M	SAI ~	02 ~	FF ~	IS$$1730808543545830 ~	23.00~	0~	3~	3~	6182110
2P-TE90-420-M10-05	MODULAR ~	20.00	4	18.00	35.00	55.00	M10	4.70	O	0.07	5.00~	3.00~	90.0~	~	~	F ~	CMP-2P05 ~	71E01A05D27A8 ~	2PKT 050304R-M	SAI ~	02 ~	FF ~	IS$$1730808543545830 ~	35.00~	0~	4~	4~	6142868
2P-TE90-421-M12-05	MODULAR ~	21.00	4	21.00	35.00	57.00	M12	4.70	O	0.09	5.00~	3.00~	90.0~	~	~	F ~	CMP-2P05 ~	71E01A05D27A8 ~	2PKT 050304R-M	SAI ~	02 ~	FF ~	IS$$1730808543545830 ~	35.00~	0~	4~	4~	6165599
2P-TE90-525-M12-05	MODULAR ~	25.00	5	21.00	35.00	57.00	M12	4.70	O	0.11	5.00~	2.20~	90.0~	~	~	F ~	CMP-2P05 ~	71E01A05D27A8 ~	2PKT 050304R-M	SAI ~	02 ~	FF ~	IS$$1730808543545830 ~	35.00~	0~	5~	5~	6142869
2P-TE90-625-M12-05	MODULAR ~	25.00	6	21.00	35.00	57.00	M12	4.70	O	0.11	5.00~	2.20~	90.0~	~	~	XF ~	CMP-2P05 ~	71E01A05D27A8 ~	2PKT 050304R-M	SAI ~	02 ~	FF ~	IS$$1730808543545830 ~	35.00~	0~	6~	6~	6142870
2P-TE90-732-M16-05	MODULAR ~	32.00	7	29.00	43.00	68.00	M16	4.70	O	0.23	5.00~	1.50~	90.0~	~	~	XF ~	CMP-2P05 ~	71E01A05D27A8 ~	2PKT 050304R-M	SAI ~	02 ~	FF ~	IS$$1730808543545830 ~	43.00~	0~	7~	7~	6165609
