Home Page > Milling & Solid End mills > > KIT CHASE10MILL-FOLLOW

Milling & Solid End mills
Main Application

More Info

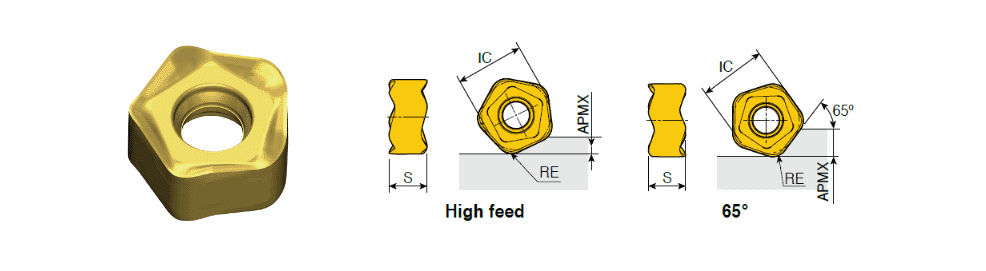

KIT CHASE10MILL-FOLLOW : The Kit for mass production contains PTKU 10-corner inserts for high feed face milling

Designation	IC	S	APMX	RE	GICAT	giic
KISFF-A-PTKU 05-M	7.10	3.80	1.50	1.50	6338427	1
KISFF-B-PTKU 05-M	7.10	3.80	1.50	1.50	6338428	1
KISFF-B-PTKU 10-M	14.20	7.70	3.00	3.00	6338430	1

For recommended machining condition, please click on "More Info"
Data for 65° facing
