TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

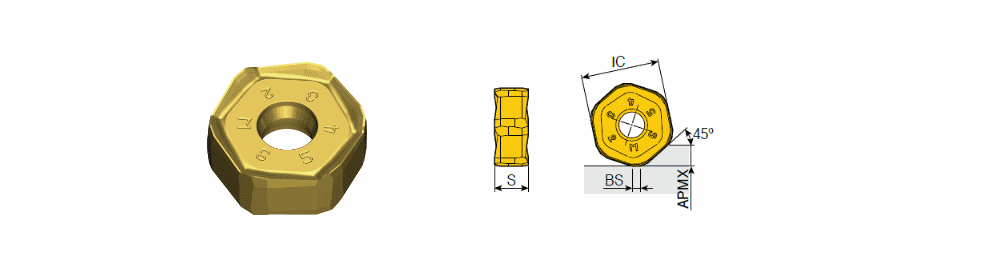

KIT CHASE12MILL-FOLLOW : The Kit for mass production contains HXKU 12 corner inserts for high productivity 45° face milling

Designation	IC	S	APMX	BS	GICAT	giic
KISFF-A-HXKU 06-M	14.00	6.80	3.00	1.00	6338441	1
KISFF-B-HXKU 06-M	14.00	6.80	3.00	1.00	6338442	1
KISFF-C-HXKU 06-M	14.00	6.80	3.00	1.00	6217283	1
KISFF-A-HXKU 10-M	19.50	8.30	3.00	1.00	6338443	1
KISFF-B-HXKU 10-M	19.50	8.30	3.00	1.00	6338444	1
KISFF-C-HXKU 10-HR	19.50	8.30	3.00	1.00	6217730	1
KISFF-C-HXKU 10-M	19.50	8.30	3.00	1.00	6217282	1
