TCAHR/L-TB : Parallel type holders for TCAER/L & TCAQR/L cartridges with high pressure coolant
Coolant pressure: recommended 70 bar, max. up to 340 bar

Coolant pressure: recommended 70 bar, max. up to 340 bar

 COOLANT_COOLBURST

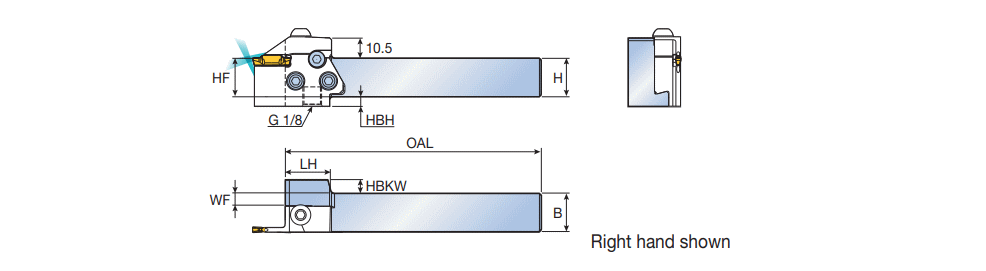

  DesignationH HF B OAL WF HBH HBKW LH Tool typ  HAND ClssID GICATGIREMgiicGICODE
  TCAHL 2020-TB 20.020.020.0133.006.505.07.024.0SQUARE ~O ~L ~71EAD3871D313 ~6166400 0
  TCAHR 2020-TB 20.020.020.0133.006.505.07.024.0SQUARE ~O ~R ~71EAD3871D313 ~6166399 0
  TCAHL 2525-TB 25.025.025.0133.0011.50-2.024.0SQUARE ~O ~L ~71EAD3871D313 ~6165342 0
  TCAHR 2525-TB 25.025.025.0133.0011.50-2.024.0SQUARE ~O ~R ~71EAD3871D313 ~6165278 0
Cartridge should be ordered separately
