TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving - - TCAHPR/L-TB
× Login Information

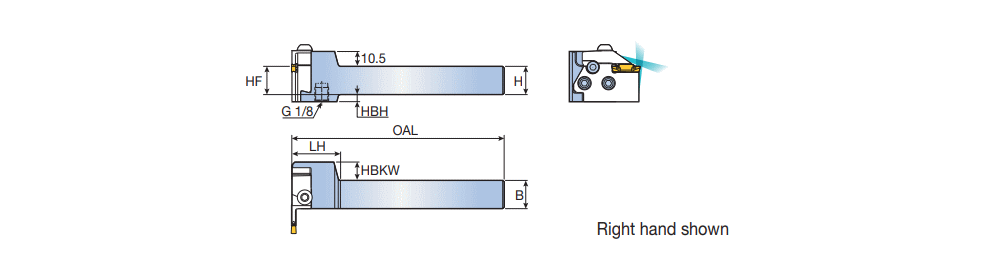

TCAHPR/L-TB : Perpendicular type holders for TCAER/L & TCAQR/L cartridges with high pressure coolant
Coolant pressure: recommended 70 bar, max. up to 340 bar

Coolant pressure: recommended 70 bar, max. up to 340 bar

 COOLANT_COOLBURST
  DesignationH HF B OAL HBH HBKW LH Tool typ  HAND ClssID GICATGIREMgiicGICODE
  TCAHPL 2020-TB 20.020.020.0150.005.013.033.0SQUARE ~X ~L ~71EAD3871D313 ~6309987 0
  TCAHPR 2020-TB 20.020.020.0150.005.013.033.0SQUARE ~X ~R ~71EAD3871D313 ~6309986 0
  TCAHPL 2525-TB 25.025.025.0150.00-8.033.0SQUARE ~X ~L ~71EAD3871D313 ~6309988 0
  TCAHPR 2525-TB 25.025.025.0150.00-8.033.0SQUARE ~X ~R ~71EAD3871D313 ~6309989 0
Cartridge should be ordered separately
