C*-TCAHN-TB : Parallel type C-Adapters for TCAER/L & TCAQR/L cartridges with high pressure coolant
Coolant pressure: recommended 70 bar, max. up to 340 bar

Coolant pressure: recommended 70 bar, max. up to 340 bar

 COOLANT_COOLBURST

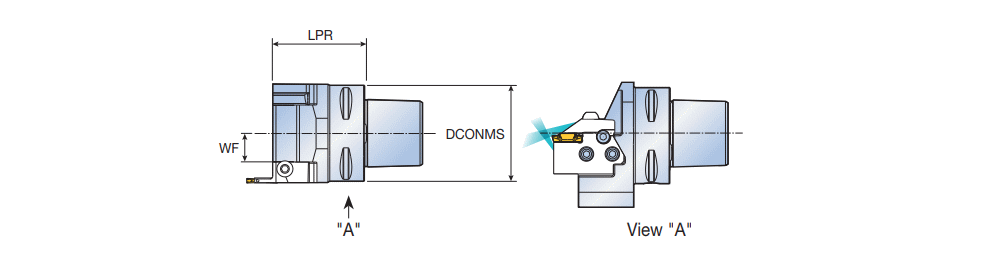

  DesignationDCONMS LPR WF Tool typ  ClssID GICATGIREMgiicGICODE
  C4-TCAHN-TB 40.0055.0011.50HOLDER ~X ~71EAD3871D313 ~6338185 0
  C5-TCAHN-TB 50.0058.0013.70HOLDER ~X ~71EAD3871D313 ~6338187 0
  C6-TCAHN-TB 63.0060.0018.70HOLDER ~X ~71EAD3871D313 ~6338189 0
Cartridge should be ordered separately
