C*-TCAHPN-TB : Perpendicular type C-Adapters for TCAER/L & TCAQR/L cartridges with high pressure coolant
Coolant pressure: recommended 70 bar, max. up to 340 bar

Coolant pressure: recommended 70 bar, max. up to 340 bar

 COOLANT_COOLBURST

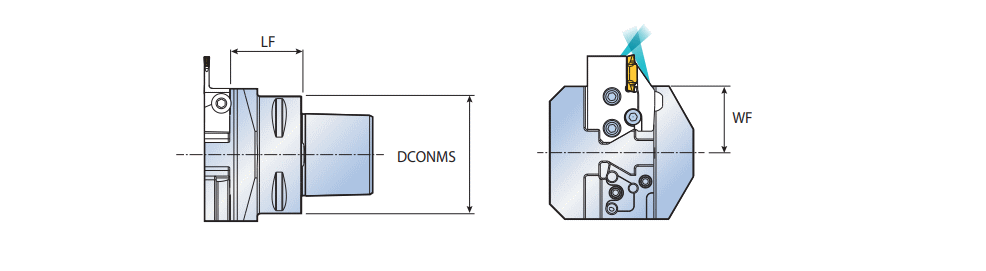

  DesignationDCONMS LF WF Tool typ  ClssID GICATGIREMgiicGICODE
  C4-TCAHPN-TB 40.0036.5034.00HOLDER ~X ~71EAD3871D313 ~6338186 0
  C5-TCAHPN-TB 50.0036.5035.00HOLDER ~X ~71EAD3871D313 ~6338188 0
  C6-TCAHPN-TB 63.0038.5035.50HOLDER ~X ~71EAD3871D313 ~6338190 0
Cartridge should be ordered separately
