TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

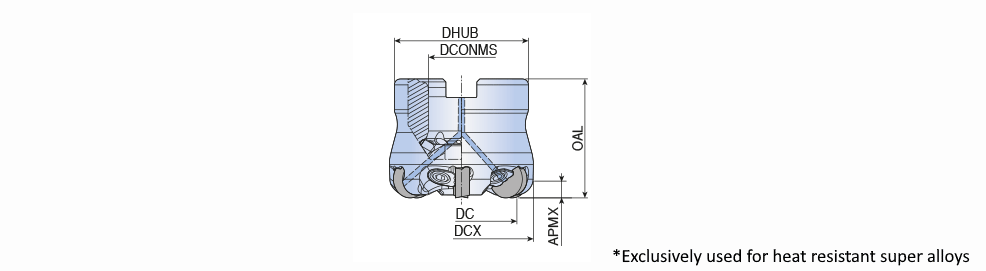

TFMRP-R-12 : Face mills with positive round RPGN 12 ceramic inserts & wedge clamp with air hole for high speed milling of super alloys with low cutting force

Use only air (Coolant is prohibited)

Designation	Tool sty	DC	DCX	CICT	DCONMS	DHUB	OAL	APMX	Air hole	Arbor		Mtg. Ref	S1	D3	Rd	R/L	KAPR	PD	Insert	Pocket	ClssID	MIID		RE	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT	GIREM	giic	GICODE
TFMRP 450-22R-12	FACE MILL ~	37.30	50.00	4	22.00	45.00	40.00	6.30	O	A	0.30	LH M10x25	12.00~	0.00~	7.00~	~	3.0~	RC ~	CS-RP12 ~	~	71E01A05B627B ~	RPGN 1204 FL-E04	Air hole ~	6.35~	FDA ~	02 ~	RN ~	IS$$160660650393513 ~	40.00~	4~	4~	4~	6339459		0
TFMRP 650-22R-12	FACE MILL ~	37.30	50.00	6	22.00	45.00	40.00	6.30	O	A	0.30	LH M10x25	12.00~	0.00~	7.00~	~	3.0~	RF ~	CS-RP12 ~	~	71E01A05B627B ~	RPGN 1204 FL-E04	Air hole ~	6.35~	FDA ~	02 ~	RN ~	IS$$160660650393513 ~	40.00~	6~	6~	6~	6337335		0

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
