TJS HPC BT40 : High-pressure 40-70 bar coolant driven high-speed spindle with BT40 shanks for max. shank diameter 7mm tools. For semi-finishing & finishing applications in milling, drilling & grinding on limited RPM machines.

For ER-SPR collets use "AA" type only

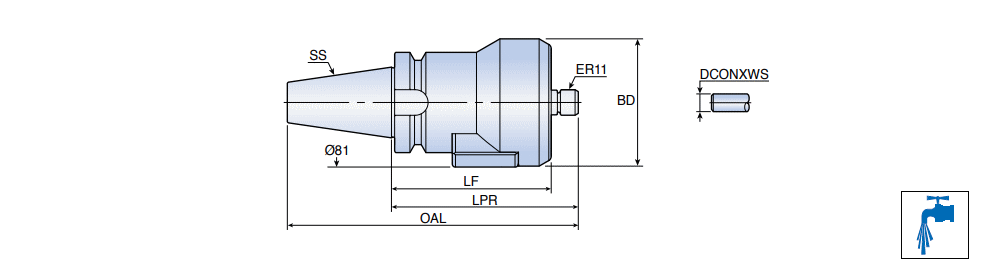

Designation	SS	DCONXWS	LF	LPR	BD	OAL		S3	LTA	GICAT	GIREM	giic	GICODE
TJS HPC BT40	BT40	7.00	100.00	117.00	80.00	183.00	2.00	ER11 ~	110.40~	6330794		0

Coolant pressure: 40 - 70 bar and flow rate: 16 - 22 /min
Rotational spindle speed [rpm]: 25,000 - 45,000 (rev/min)
The spindle provides only external strong coolant jet around the tool
DCONXWS: Maximum diameter of tools
For user guide, click on "More Info"
