RPGN 1204 FL : Flat type positive round ceramic inserts for high speed milling of super alloys with low cutting force

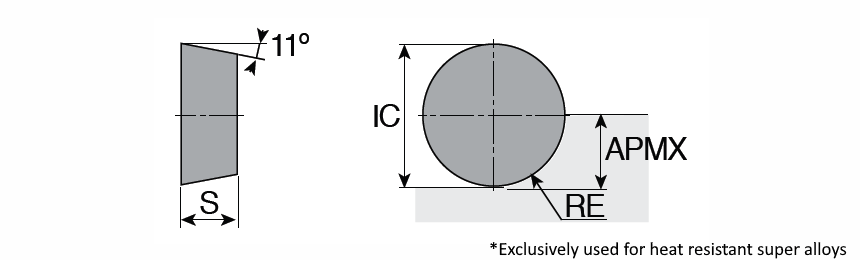

Designation	RE	IC	S	APMX	S1	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CEDC	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RPGN 1204 FL-E	6.35	12.70	4.76	6.00	12.00~	CS-RP12 ~	0.50	2.00	0.200	0.070	M10 ~	~	71D1AA6635E76 ~	4~	C60 ~	TC3020~	IS$$160660650393513 ~	RPGN 12 ~	0~	6301182	2	TC3030 TC3020
RPGN 1204 FL-E04	6.35	12.70	4.76	6.00	12.00~	CS-RP12 ~	0.50	2.00	0.200	0.070	M10 ~	~	71D1AA6635E76 ~	4~	C60 ~	TC3020~	IS$$160660650393513 ~	RPGN 12 ~	0~	6309656	2	TC3030 TC3020
RPGN 1204 FL-T6	6.35	12.70	4.76	6.00	12.00~	CS-RP12 ~	0.50	2.00	0.200	0.070	M10 ~	~	71D1AA6635E76 ~	4~	C60 ~	TC3020~	IS$$160660650393513 ~	RPGN 12 ~	0~	6301183	2	TC3030 TC3020

Edge preparations
E: 0.02-0.03mm Honing
E04: 0.04-0.05mm Honing
T6: 0.1mm x 20° Land
