TaeguTec Cutting Tools - Metal Working Tools - Turning -

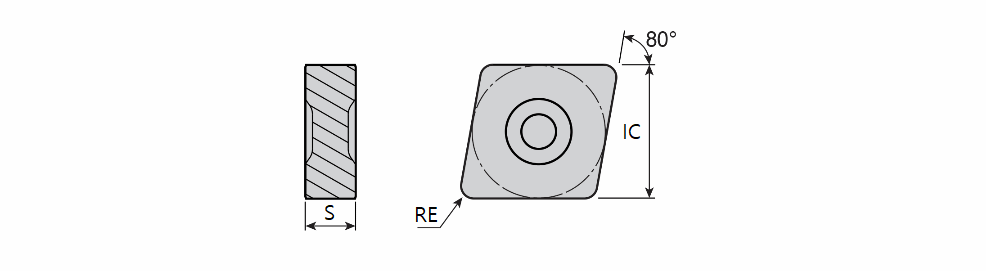

CNGX-DA (CBN) : Negative 80° rhombic dimple type solid CBN inserts for high-feed high-depth roughing & high-speed finishing of cast iron

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	SSC	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
CNGX 120412 DA	12.70	4.76	1.20	12.90~	80~	0.00~	0.10	4.00	0.05	0.30	4~	P ~	~	C ~	71DD68D301C30 ~	CBN ~	~	TB7020~	2~	ISO$CN1204122NA$$12 ~	433 DA ~	CNGX ~	Y ~	6320832		1		TB7020
CNGX 120416 DA	12.70	4.76	1.60	12.90~	80~	0.00~	0.10	4.00	0.05	0.30	4~	P ~	~	C ~	71DD68D301C30 ~	CBN ~	12 ~	TB7020~	2~	ISO$CN1204162NA$$16 ~	434 DA ~	CNGX ~	Y ~	6190385		1		TB7020

DA: Dimple type solid CBN 0.20 X 20° with Honing
