SNGX-DA (CBN) : Negative square dimple type solid CBN inserts for high-feed high-depth roughing & high-speed finishing of cast iron

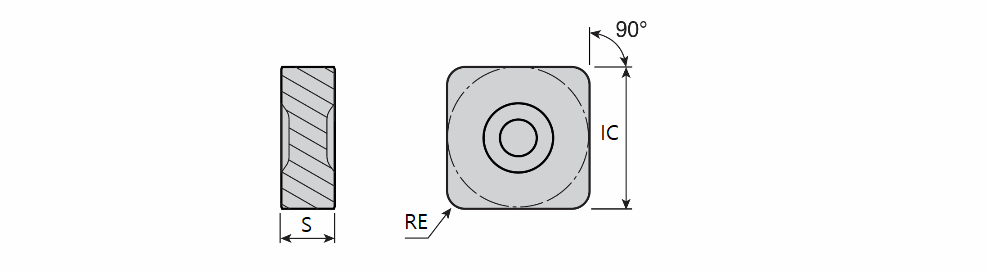

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
SNGX 120416 DA	12.70	4.76	1.60	12.70~	90~	0.00~	0.10	4.00	0.05	0.30	8~	P ~	~	S ~	71DD68D829217 ~	CBN ~	TB7020~	2~	ISO$SN1204162NA$$16 ~	434 DA ~	SNGX ~	Y ~	6320833		1		TB7020

DA: Dimple type solid CBN 0.20 X 20° with Honing
