TSKNR/L-DA : Combi-clamp facing T-holders with 75° approach angle & SNGX-DA solid CBN dimple inserts for high-feed high-depth roughing & high-speed finishing of cast iron

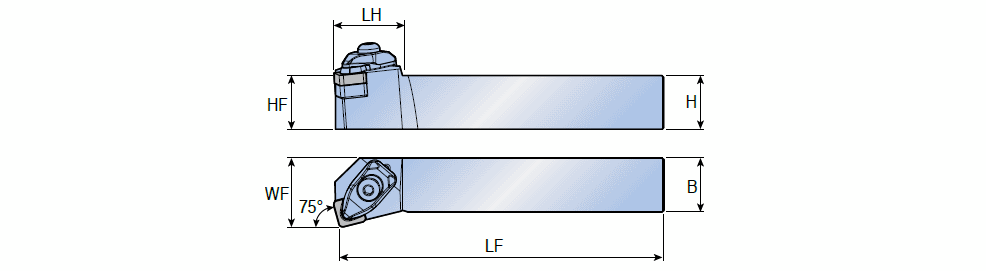

Right-hand shown

Designation	H	HF	B	LF	LH	WF	IC	S	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
TSKNR 2525 M1204-DA	25.0	25.0	25.0	150.00	29.0	32.00	12.70~	4.76~	0~	75.0~	T-HOLDER (DA) ~	SQUARE ~	R ~	71E01A0E85121 ~	SNGX 120416 DA	IS$$79997063653881 ~	6324440		0
