TaeguTec Cutting Tools - Metal Working Tools - Turning -

CCLNR/L-F : Combi-clamp Top holders with 95° approach angle & CNGN flat type CBN or ceramic inserts for strong clamping force

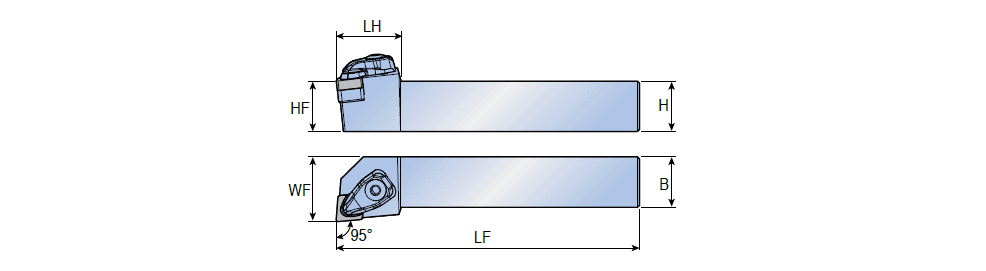

Right-hand shown

Designation	H	HF	B	LF	LH	WF	IC	S	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
CCLNL 2525 M1204-F	25.0	25.0	25.0	150.00	32.0	32.00	12.70~	4.76~	95~	95.0~	T-HOLDER (F) ~	SQUARE ~	L ~	71E01A0E85121 ~	CNGN 120408	IS$$225698690682843 ~	6185167		0
CCLNR 2525 M1204-F	25.0	25.0	25.0	150.00	32.0	32.00	12.70~	4.76~	95~	95.0~	T-HOLDER (F) ~	SQUARE ~	R ~	71E01A0E85121 ~	CNGN 120408	IS$$225698690682843 ~	6182114		0
