Home Page > Milling & Solid End mills > > TQCA-FM

Milling & Solid End mills
Main Application

Related Tool

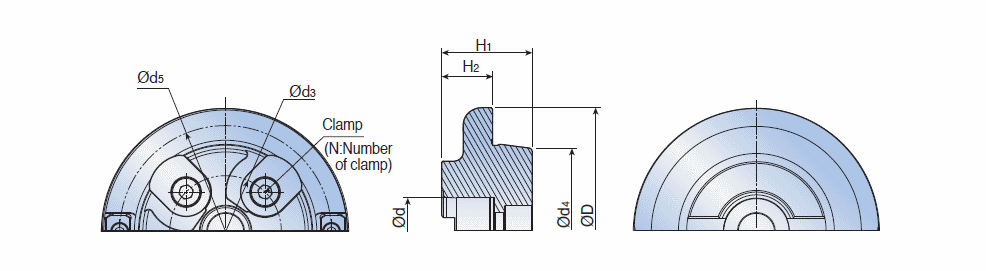

TQCA-FM : New quick change cutter-basic arbor type

Designation	D	d	d1	d2	d3	d4	d5	N	H1	H2		Adaptor	GICAT	GIREM	giic	GICODE
TQCA D160-FM40	150.00	40.00	-	-	68.00	100.4	129.0	4.0	55.000	31.0	3.90	TQCA D160 ~	6109167		0
TQCA D200-FM60	190.00	60.00	-	-	108.00	140.4	169.0	4.0	55.000	31.0	5.80	TQCA D200 ~	6109168		0
