TaeguTec Cutting Tools - Metal Working Tools - Turning -

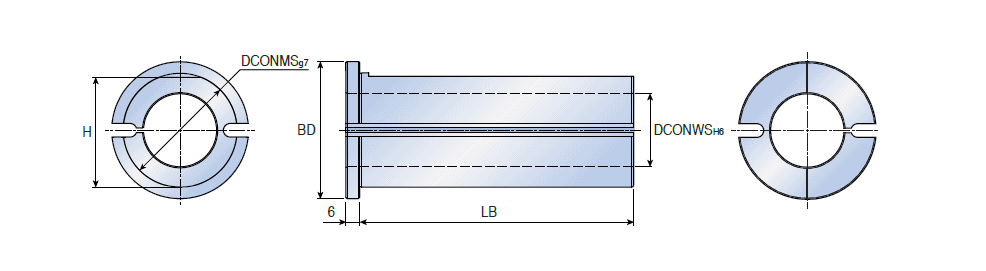

QSL (HUSH-BORE) : HUSH-BORE Sleeves for deep boring machining up to 10 times with anti-vibration damping round shank

Designation	DCONMS	DCONWS	BD	LB	H	ClssID	LTA	CCTWS	CCFWS	IIC	GICAT
QSL-32-16-L66	32.00	16.00	42.00	60.00	31.0	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210469
QSL-32-20-L66	32.00	20.00	42.00	60.00	31.0	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210470
QSL-32-25-L66	32.00	25.00	42.00	60.00	31.0	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210471
QSL-40-16-L106	40.00	16.00	50.00	100.00	38.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210472
QSL-40-20-L106	40.00	20.00	50.00	100.00	38.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210473
QSL-40-25-L106	40.00	25.00	50.00	100.00	38.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210474
QSL-40-32-L106	40.00	32.00	50.00	100.00	38.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210475
QSL-50-20-L126	50.00	20.00	60.00	120.00	48.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210476
QSL-50-25-L126	50.00	25.00	60.00	120.00	48.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210477
QSL-50-32-L126	50.00	32.00	60.00	120.00	48.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210478
QSL-50-40-L126	50.00	40.00	60.00	120.00	48.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210479
QSL-60-32-L156	60.00	32.00	70.00	150.00	58.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210480
QSL-60-40-L156	60.00	40.00	70.00	150.00	58.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210481
QSL-60-50-L156	60.00	50.00	70.00	150.00	58.5	71E01A0E9CBA9 ~	6.00~	ZYL ~	01 ~	~	6210482
