TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

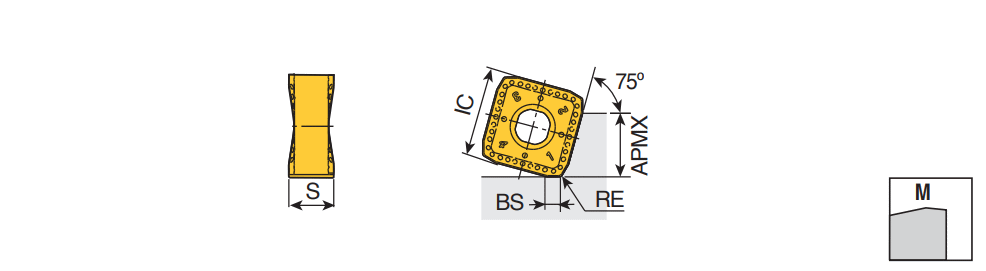

SNMX 1306 ENTN-M : Double-sided square inserts with 8 cutting edges for 75 face mills and general applications

Designation	IC	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMX 1306 ENTN-M	13.50	7.00	2.20	0.40	9.50	13.00~	2.50	8.00	0.200	0.100	M8 ~	8~	C2Q-SN13E ~	S ~	71DD68D829217 ~	U60 ~	M ~	8525B ~	IS$$193577854705004 ~	SNMX 13 ~	0~	6338330		6		TT8080 TT8525B TT9080 TT7515 TT6080 TT2510
