TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

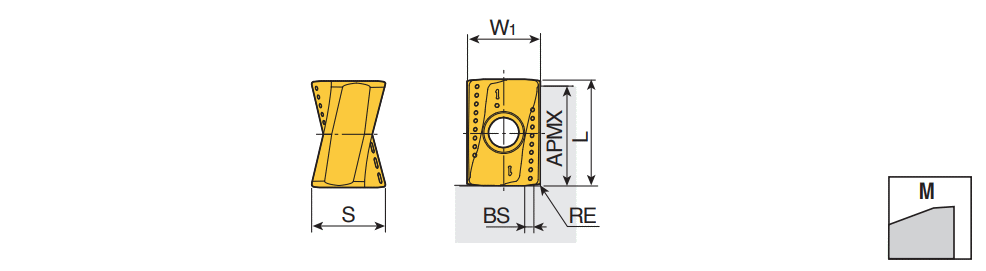

ANMX 11/16 R-M : Double sided inserts with 4 helical positive cutting edges for general machining and 90° shoulders

Designation	L	W1	BS	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
ANMX 110608R-M	12.00	9.20	1.10	8.50	0.80	11.00	11.00~	3.00	9.00	0.200	0.100	M6 ~	4~	C2M-AN11 ~	H ~	71DD68D91938A ~	U60 ~	M ~	TT8080~	IS$$394832874564720 ~	ANMX 11 ~	0~	5615134		2		TT8080 TT9080
ANMX 160708R-M	16.00	11.00	1.40	10.60	0.80	15.00	16.00~	4.50	12.00	0.200	0.100	M6 ~	4~	C2M-AN16 ~	H ~	71DD68D91938A ~	U60 ~	M ~	TT8080~	IS$$671076056717965 ~	ANMX 16 ~	0~	5614933		2		TT8080 TT9080
