TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

3PHT 10-M : High positive inserts 3PHT with three helical cutting edges for 90° shoulders & general machining

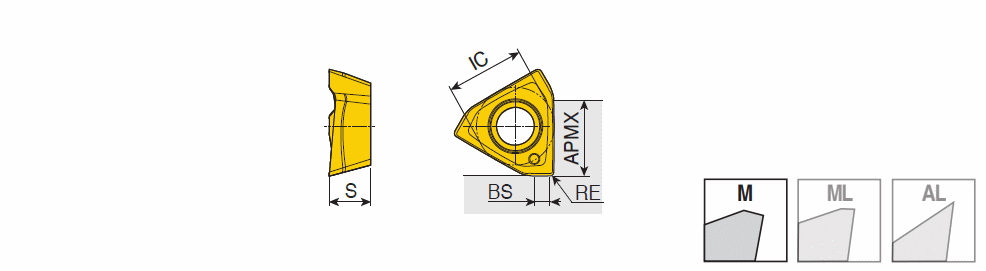

Designation	IC	RE	BS	S	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
3PHT 100404R-M	6.90	0.40	1.30	4.00	7.00	10.00~	3~	MR-3P10 ~	2.00	6.00	0.120	0.050	M6 ~	T ~	71DD68D8446CE ~	G60 ~	M ~	CT7000~	IS$$749292326746570 ~	3PK(H)T 10 ~	0~	6184481		3		TT9080 CT7000 TT2510
3PHT 100408R-M	6.90	0.80	0.90	4.00	7.00	10.00~	3~	MR-3P10 ~	2.00	6.00	0.120	0.050	M6 ~	T ~	71DD68D8446CE ~	G60 ~	M ~	CT7000~	IS$$749292326746570 ~	3PK(H)T 10 ~	0~	5802529		2		TT9080 CT7000
