TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

RTHX 10/12-5ML : Round inserts with 5 indexing bottom & strong cutting edges dedicated for stainless steels and difficult-to-cut materials in power generation and aerospace industries

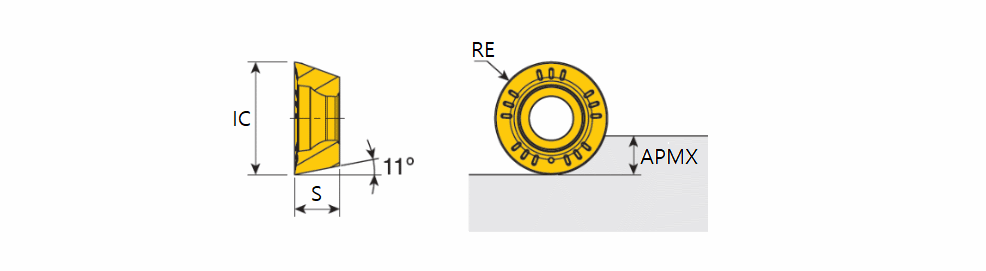

Designation	IC	S	RE	APMX	S1	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
RTHX 1004-5ML	10.00	4.00	5.00	3.30	10.00~	CM-RT10 ~	1.50	3.30	0.300	0.050	~	R ~	71D1AA6635E76 ~	5~	G40 ~	ML ~	TT8080~	IS$$189967084805677 ~	RTHX 10 ~	0~	6164710		1		TT8080

RTHX 08 mm inserts are available upon request as tailor-made item.
