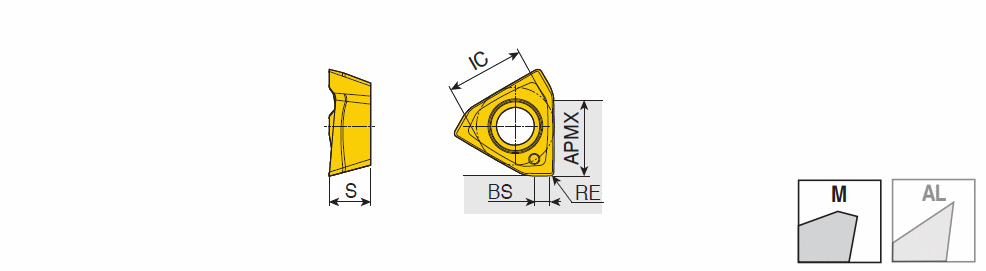

3PHT 19-M : High positive inserts 3PHT with three helical cutting edges for 90° shoulders & general machining

Designation	IC	RE	BS	S	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
3PHT 190608R-M	13.50	0.80	2.00	6.00	15.00	19.00~	3~	MR-3P19 ~	4.50	12.00	0.220	0.090	M6 ~	T ~	71DD68D8446CE ~	G60 ~	M ~	CT7000~	IS$$480452481487036 ~	3PK(H)T 19 ~	0~	6309330		2		TT9080 CT7000
