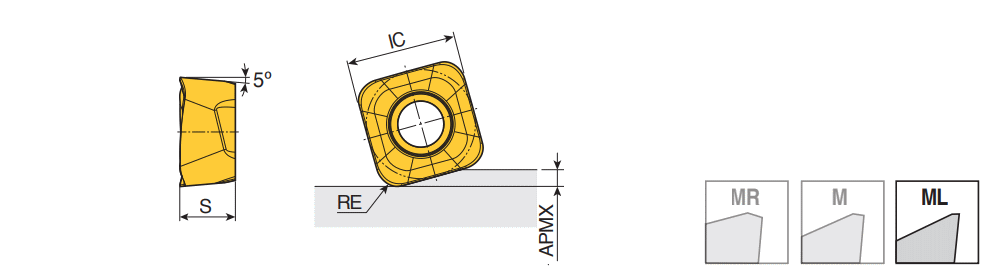

SBMT 09-ML : Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 1.2 mm

Designation	IC	S	APMX	RE	fz (max)	fz (min)	ap (min)	ap (max)	S1	SF	CEDC	Insert	SC	l	Rg		Pocket	ESP	ClssID	KAPR	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SBMT 090415R-ML	9.00	4.00	1.20	1.50	1.300	0.300	0.10	1.20	9.00~	M7.5 ~	4~	CF-SB09 ~	S ~	9.00~	3.0~	0.00~	SBMT 09 ~	U40 ~	71DD68D829217 ~	14.0~	~	TT3535~	IS$$1863280635264620 ~	0~	6246052		3		TT8080 TT3535 TT9080
