TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

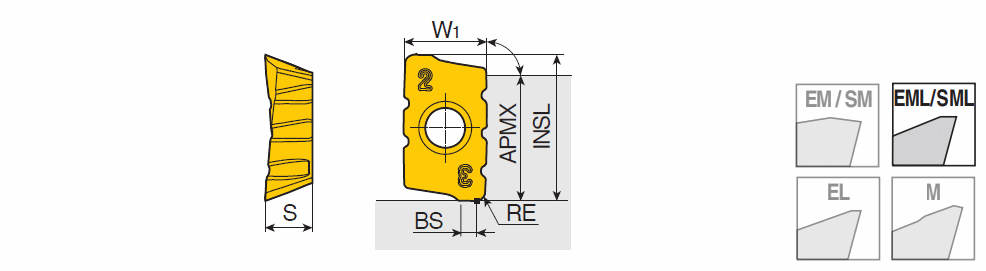

APKT 1705 PER-SML : Positive chip splitter inserts of APKT 17 with two helical cutting edges & high positive rake for 90° shoulders and 3 splitting grooves on one side & 2 splitting grooves on the opposite

Designation	CEDC	Insert	INSL	W1	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	apmax MF	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
APKT 1705 PER-SML	2~	CM-AP17 ~	18.50	10.70	5.56	2.26	0.80	16.00	17.00~	4.50	14.50	0.170	0.060	M7 ~	A ~	71DD68D91938A ~	U60-CS ~	3.90~	SML ~	TT8080~	IS$$739566412056745 ~	APKT 17 ~	0~	5616841		2		TT8080 TT9080
