TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

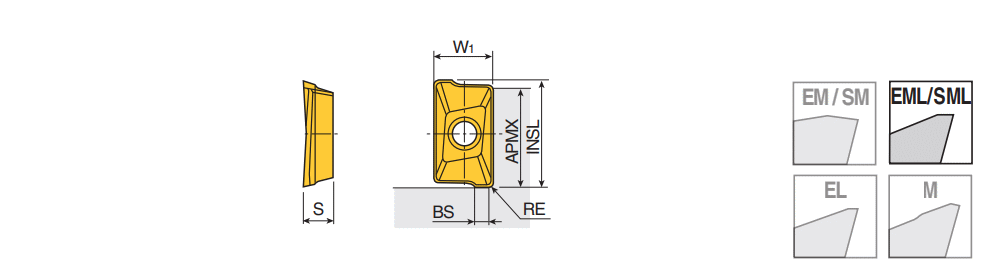

APKT 1705 PER-EML : High positive inserts with two helical cutting edges for 90° shoulders & general machining

Designation	INSL	W1	S	BS	RE	APMX	S1	S2	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	apmax MF	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
APKT 1705 PER-EML	18.50	10.70	5.56	2.26	0.80	16.00	17.00~	1.00000 ~	2~	CM-AP17 ~	4.50	13.00	0.140	0.070	M6 ~	A ~	71DD68D91938A ~	U40 ~	3.90~	EML ~	TT3535~	IS$$797325573852665 ~	APKT 17 ~	0~	6252103		5		TT8080 TT3540 TT3535 TT7080 TT9080
