TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

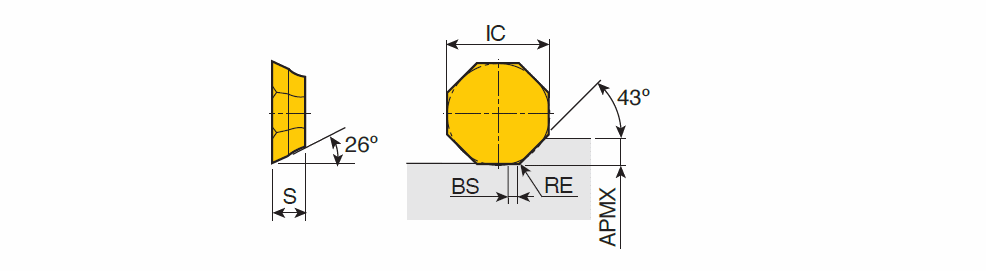

OFCR 07-ML : Octagonal super positive milling inserts for stainless steel& low cutting force machining in wedge clamping cutters

Designation	IC	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
OFCR 0704 TN-ML	17.94	5.00	1.70	0.80	5.00	7.00~	8~	CO-OF07 ~	1.50	4.00	0.150	0.050	M5.5 ~	O ~	71DD68D7CB4FA ~	U40 ~	ML ~	TT6080~	IS$$154688328580464 ~	OFCR 07 ~	0~	5613723		2		TT7080 TT6080
