TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

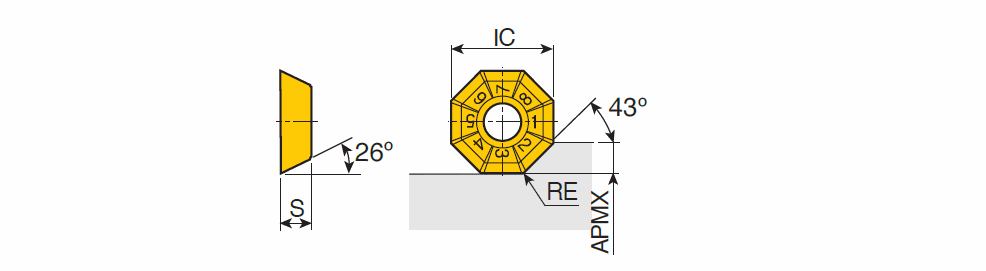

OFCW 05-EMR : Octagonal super positive screw type & flat type milling inserts for hardened and molded steel

Designation	IC	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
OFCW 05T3 TN-EMR	12.70	3.85	0.60	3.50	5.00~	1.00	3.00	0.150	0.080	M10 ~	8~	CO-OF05 ~	O ~	71DD68D7CB4FA ~	U70 ~	EMR ~	TT6080~	IS$$125564154818460 ~	OFCW 05 ~	0~	5616193		5		TT8020 TT7080 TT9030 TT9080 TT6080
