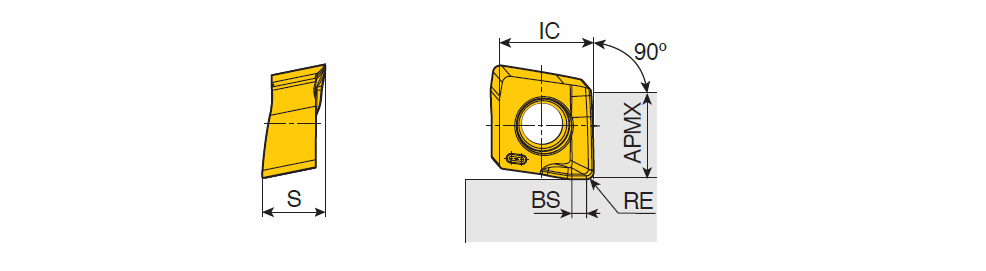

2PKT 05-ML : Positive double-sided inserts with two helical cutting edges & strong double-dovetail design for stable machining of 90° shouldering

Designation	IC	S	APMX	BS	RE	ap (min)	ap (max)	fz (max)	fz (min)	S1	Insert	SF	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
2PKT 050304R-ML	5.17	3.40	4.70	0.80	0.40	0.50	4.20	0.120	0.020	5.00~	CMP-2P05 ~	M6 ~	2~	B ~	71DD68D301C30 ~	U40 ~	ML ~	TT8080~	IS$$1730808543545830 ~	2PKT 05 ~	0~	5630081		2		TT8080 TT9080
2PKT 050308R-ML	5.17	3.40	4.70	0.40	0.80	0.50	4.20	0.180	0.060	5.00~	CMP-2P05 ~	M8 ~	2~	B ~	71DD68D301C30 ~	U40 ~	ML ~	TT8080~	IS$$1730808543545830 ~	2PKT 05 ~	0~	6154125		2		TT8080 TT9080
