TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

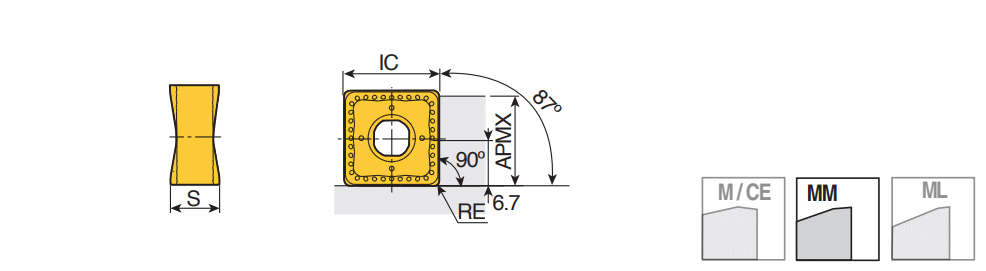

SNGX 1306-MM : Double-sided ground square inserts with 8 cutting edges and various corner R for 90° and 88° face mills

Designation	IC	S	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	W.link	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNGX 130608-MM	13.50	7.00	0.80	12.00	13.00~	8~	C2Q-SN13P ~	3.60	9.60	0.150	0.075	M7.5 ~	30~	S ~	71DD68D829217 ~	G50 ~	MM ~	TT8080~	IS$$539599412267424 ~	SNGX 13 ~	0~	5615167	1	TT8080
SNGX 130612-MM	13.50	7.00	1.20	12.00	13.00~	8~	C2Q-SN13P ~	3.60	9.60	0.150	0.075	M7.5 ~	30~	S ~	71DD68D829217 ~	G50 ~	MM ~	TT6080~	IS$$539599412267424 ~	SNGX 13 ~	0~	5615186	1	TT6080
SNGX 130616-MM	13.50	7.00	1.60	12.00	13.00~	8~	C2Q-SN13P ~	3.60	9.60	0.150	0.075	M7.5 ~	30~	S ~	71DD68D829217 ~	G50 ~	MM ~	TT7080~	IS$$539599412267424 ~	SNGX 13 ~	0~	5614819	2	TT8080 TT7080
