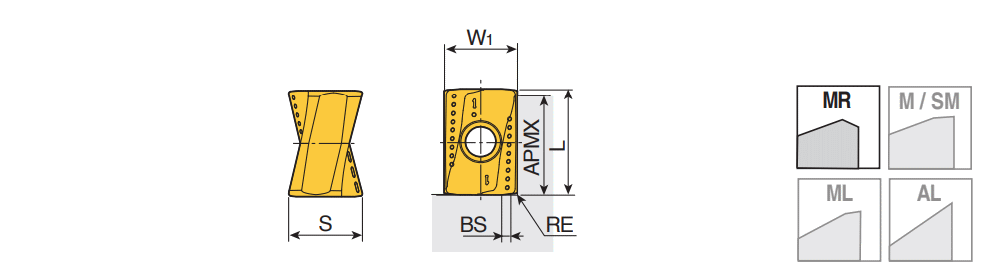

ANHX 16 R-MR : Double sided ground inserts with 4 helical positive cutting edges for 90° shouldering

Designation	L	W1	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
ANHX 160708R-MR	16.00	11.00	10.60	1.30	0.80	15.00	16.00~	4~	C2M-AN16 ~	4.50	12.00	0.250	0.125	M10 ~	A ~	71DD68D91938A ~	G70 ~	MR ~	TT8080~	IS$$671076056717965 ~	ANM(H)X 16 ~	0~	5612284		1		TT8080
