TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

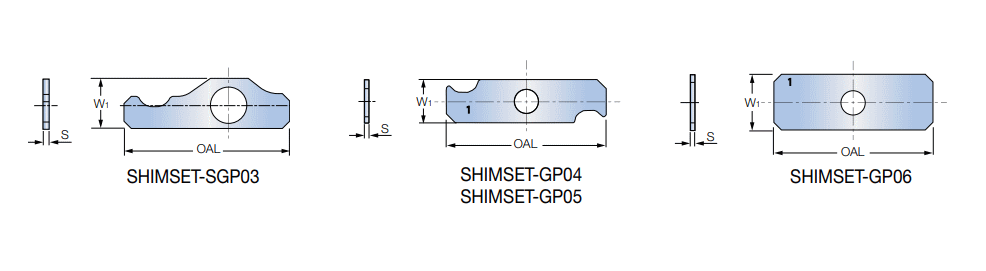

SHIMSET (Gundrill) : Shim set for drill diameter adjustment range 0.01-0.1 mm of TRGD Gundrill

Designation	W1	OAL	S	S2	GICAT
SHIMSET-SGP03	3.45	11.40	0.01-0.05	GO03 ~	6285255
SHIMSET-GP04	4.00	16.00	0.01-0.05	GO04 ~	6221768
SHIMSET-GP05	5.00	18.00	0.01-0.05	GO05 ~	6339582
SHIMSET-GP06	6.00	20.00	0.01-0.05	GO06 ~	6221769

The shim set consists of five shims in different thicknesses. (0.01, 0.02, 0.03, 0.04, 0.05 mm)
Shims are sold by set only, and are not to be sold separately
