TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

3P TF90-R-15 : 90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 15

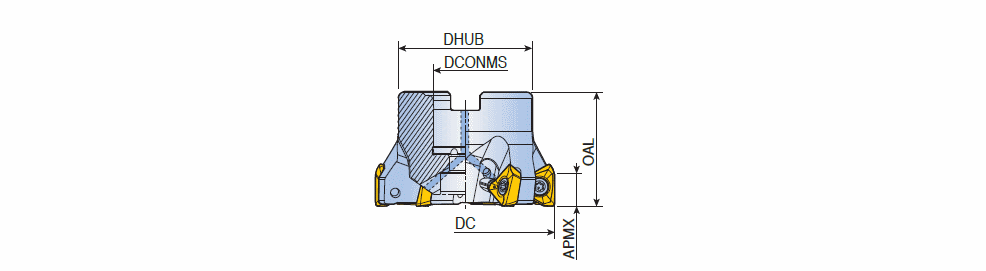

Designation	Tool sty	S3	S1	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	K	R/L	Rd	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
3P TF90-450-22R-15	FACE MILL ~	2 ~	15.00~	50.00	4	22.00	45.00	40.00	11.00	O	A	0.28~	SH M10X1.5X30	90.0~	~	1.50~	RC ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	40.00~	4~	4~	3108734
3P TF90-550-22R-15	FACE MILL ~	4 ~	15.00~	50.00	5	22.00	45.00	40.00	11.00	O	A	0.27~	SH M10X1.5X30	90.0~	~	1.50~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	40.00~	5~	5~	3108803
3P TF90-463-22R-15-B	FACE MILL ~	6 ~	15.00~	63.00	4	22.00	47.00	40.00	11.00	O	A	0.44~	SH M10X1.5X30	90.0~	~	1.10~	RC ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	40.00~	4~	4~	3111968
3P TF90-663-22R-15	FACE MILL ~	7 ~	15.00~	63.00	6	22.00	47.00	40.00	11.00	O	A	0.42~	SH M10X1.5X30	90.0~	~	1.10~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	40.00~	6~	6~	3108735
3P TF90-463-27R-15-B	FACE MILL ~	8 ~	15.00~	63.00	4	27.00	58.00	50.00	11.00	O	A	0.69~	SH M12X1.75X35	90.0~	~	1.10~	RC ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	50.00~	4~	4~	6185897
3P TF90-480-27R-15-B	FACE MILL ~	12 ~	15.00~	80.00	4	27.00	58.00	50.00	11.00	O	A	0.94~	SH M12X1.75X35	90.0~	~	0.80~	C ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	50.00~	4~	4~	3111969
3P TF90-780-27R-15	FACE MILL ~	14 ~	15.00~	80.00	7	27.00	58.00	50.00	11.00	O	A	0.91~	SH M12X1.75X35	90.0~	~	0.80~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	50.00~	7~	7~	3108736
3P TF90-880-27R-15	FACE MILL ~	16 ~	15.00~	80.00	8	27.00	58.00	50.00	11.00	O	A	0.91~	SH M12X1.75X35	90.0~	~	0.80~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	50.00~	8~	8~	3110650
3P TF90-6100-32R-15-B	FACE MILL ~	18 ~	15.00~	100.00	6	32.00	85.00	50.00	11.00	O	A	1.78~	LH M16X2.0X35	90.0~	~	0.60~	RC ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	50.00~	6~	6~	3111970
3P TF90-8100-32R-15	FACE MILL ~	20 ~	15.00~	100.00	8	32.00	85.00	50.00	11.00	O	A	1.79~	LH M16X2.0X35	90.0~	~	0.60~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	50.00~	8~	8~	3108737
3P TF90-8125-40R-15	FACE MILL ~	21 ~	15.00~	125.00	8	40.00	85.00	63.00	11.00	O	A	2.98~	SH M20X2.5X40	90.0~	~	0.00~	RC ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	63.00~	8~	8~	6254805
3P TF90-10100-32R-15	FACE MILL ~	22 ~	15.00~	100.00	10	32.00	85.00	50.00	11.00	O	A	1.76~	LH M16X2.0X35	90.0~	~	0.60~	F ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	50.00~	10~	10~	3110651
3P TF90-7125-40R-15-B	FACE MILL ~	24 ~	15.00~	125.00	7	40.00	85.00	63.00	11.00	O	A	2.99~	SH M20X2.5X40	90.0~	~	0.50~	RC ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	63.00~	7~	7~	3111971
3P TF90-8160-40R-15	FACE MILL ~	32 ~	15.00~	160.00	8	40.00	85.00	63.00	11.00	X	C	4.78~	-	90.0~	~	0.30~	C ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	SPK ~	02 ~	IS$$711797889029040 ~	63.00~	8~	8~	6101877
3P TF90-10125-40R-15	FACE MILL ~	34 ~	15.00~	125.00	10	40.00	85.00	63.00	11.00	O	A	3.00~	SH M20X2.5X40	90.0~	~	0.50~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	63.00~	10~	10~	3108738
3P TF90-12125-40R-15	FACE MILL ~	36 ~	15.00~	125.00	12	40.00	85.00	63.00	11.00	O	A	2.98~	SH M20X2.5X40	90.0~	~	0.50~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	FDA ~	02 ~	IS$$711797889029040 ~	63.00~	12~	12~	6162649
3P TF90-12160-40R-15	FACE MILL ~	38 ~	15.00~	160.00	12	40.00	110.00	63.00	11.00	X	C	4.28~	-	90.0~	~	0.30~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	SPK ~	02 ~	IS$$711797889029040 ~	63.00~	12~	12~	3112234
3P TF90-15160-40R-15	FACE MILL ~	40 ~	15.00~	160.00	15	40.00	110.00	63.00	11.00	X	C	4.19~	-	90.0~	~	0.30~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	SPK ~	02 ~	IS$$711797889029040 ~	63.00~	15~	15~	3112236
3P TF90-15200-60R-15	FACE MILL ~	42 ~	15.00~	200.00	15	60.00	130.00	63.00	11.00	X	C	5.79~	-	90.0~	~	0.20~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	SPK ~	02 ~	IS$$711797889029040 ~	63.00~	15~	15~	3112238
3P TF90-18200-60R-15	FACE MILL ~	44 ~	15.00~	200.00	18	60.00	130.00	63.00	11.00	X	C	6.33~	-	90.0~	~	0.20~	RF ~	MR-3P15 ~	71E01A05B627B ~	3PKT 150508R-M	SPK ~	02 ~	IS$$711797889029040 ~	63.00~	18~	18~	3112240

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
