TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

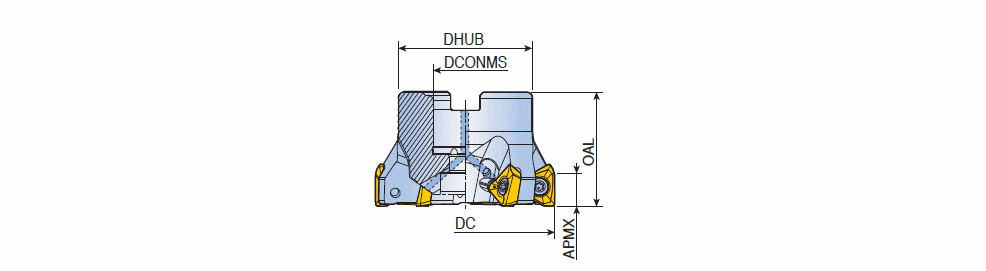

3P TF90-R-19 : 90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 19

Designation	Tool sty	S3	S1	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	K	R/L	Rd	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	IIC_2	LTA	ZEFF	ZEFP	GICAT
3P TF90-463-22R-19	FACE MILL ~	37 ~	19.00~	63.00	4	22.00	47.00	40.00	15.00	O	A	0.40~	SH M10X1.5X30	90.0~	~	1.70~	RC ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	FDA ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	40.00~	4~	4~	3110655
3P TF90-663-22R-19	FACE MILL ~	38 ~	19.00~	63.00	6	22.00	47.00	40.00	15.00	O	A	0.90~	SH M10X1.5X30	90.0~	~	1.70~	RF ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	FDA ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	40.00~	6~	6~	3108739
3P TF90-480-27R-19	FACE MILL ~	39 ~	19.00~	80.00	4	27.00	58.00	50.00	15.00	O	A	0.90~	SH M12X1.75X35	90.0~	~	1.30~	C ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	FDA ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	50.00~	4~	4~	3110656
3P TF90-780-27R-19	FACE MILL ~	40 ~	19.00~	80.00	7	27.00	58.00	50.00	15.00	O	A	1.00~	SH M12X1.75X35	90.0~	~	1.30~	RF ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	FDA ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	50.00~	7~	7~	3108740
3P TF90-6100-32R-19	FACE MILL ~	42 ~	19.00~	100.00	6	32.00	85.00	50.00	15.00	O	A	1.80~	LH M16X2.0X35	90.0~	~	1.00~	RC ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	FDA ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	50.00~	6~	6~	6162651
3P TF90-8100-32R-19	FACE MILL ~	44 ~	19.00~	100.00	8	32.00	85.00	50.00	15.00	O	A	2.60~	LH M16X2.0X35	90.0~	~	1.00~	RF ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	FDA ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	50.00~	8~	8~	3108741
3P TF90-6125-40R-19	FACE MILL ~	46 ~	19.00~	125.00	6	40.00	85.00	63.00	15.00	O	A	2.83~	-	90.0~	~	0.80~	C ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	FDA ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	63.00~	6~	6~	6101879
3P TF90-8125-40R-19	FACE MILL ~	47 ~	19.00~	125.00	8	40.00	85.00	63.00	15.00	O	A	3.00~	SH M20X2.5X40	90.0~	~	0.80~	RC ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	FDA ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	63.00~	8~	8~	3110653
3P TF90-10125-40R-19	FACE MILL ~	48 ~	19.00~	125.00	10	40.00	85.00	63.00	15.00	O	A	3.10~	SH M20X2.5X40	90.0~	~	0.80~	RF ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	FDA ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	63.00~	10~	10~	3108742
3P TF90-8160-40R-19	FACE MILL ~	50 ~	19.00~	160.00	8	40.00	110.00	63.00	15.00	X	C	4.20~	-	90.0~	~	0.60~	C ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	SPK ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	63.00~	8~	8~	6162650
3P TF90-12160-40R-19	FACE MILL ~	52 ~	19.00~	160.00	12	40.00	110.00	63.00	15.00	X	C	4.30~	-	90.0~	~	0.60~	RF ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	SPK ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	63.00~	12~	12~	3108743
3P TF90-10200-60R-19	FACE MILL ~	54 ~	19.00~	200.00	10	60.00	130.00	63.00	15.00	X	C	6.00~	-	90.0~	~	0.40~	C ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	SPK ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	63.00~	10~	10~	3112241
3P TF90-14200-60R-19	FACE MILL ~	56 ~	19.00~	200.00	14	60.00	130.00	63.00	15.00	X	C	6.00~	-	90.0~	~	0.40~	RF ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	SPK ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	63.00~	14~	14~	3112243
3P TF90-12250-60R-19	FACE MILL ~	58 ~	19.00~	250.00	12	60.00	160.00	63.00	15.00	X	C	10.50~	-	90.0~	~	0.40~	C ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	SPK ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	63.00~	12~	12~	3112245
3P TF90-16250-60R-19	FACE MILL ~	60 ~	19.00~	250.00	16	60.00	160.00	63.00	15.00	X	C	10.50~	-	90.0~	~	0.40~	RF ~	MR-3P19 ~	71E01A05B627B ~	3PKT 190608R-M	SPK ~	02 ~	IS$$364735546342328 ~	IS$$480452481487036 ~	63.00~	16~	16~	3112246

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
