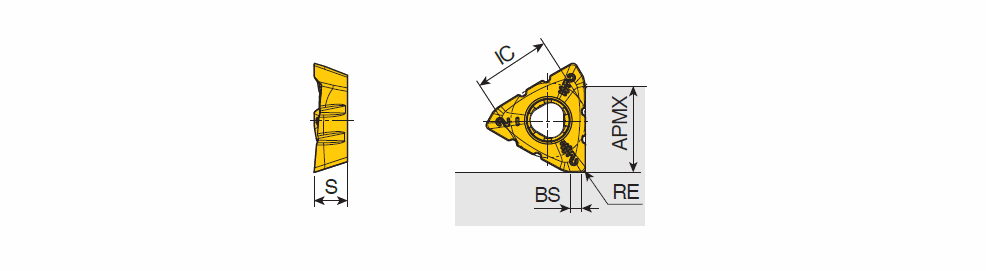

3PKT 19-SM : Chip splitter inserts of 3PKT with high positive and three helical cutting edges for 90° shoulders

Designation	d	t	ap	a	r	fz (max)	fz (min)	ap (min)	ap (max)	S1	CE	Insert	SF	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
3PKT 190608R-SM2	13.50	6.00	15.00	2.00	0.80	0.220	0.090	4.50	12.00	19.00~	3~	MR-3P19 ~	M8 ~	71DD68D8446CE ~	U60-CS ~	SM ~	8525B ~	IS$$364735546342328 ~	3PK(H)T 19 ~	0~	6345465		4		TT8080 TT8525B TT9080 TT6080
3PKT 190608R-SM3	13.50	6.00	15.00	2.00	0.80	0.220	0.090	4.50	12.00	19.00~	3~	MR-3P19 ~	M8 ~	71DD68D8446CE ~	U60-CS ~	SM ~	8525B ~	IS$$364735546342328 ~	3PK(H)T 19 ~	0~	6345466		4		TT8080 TT8525B TT9080 TT6080

-SM2: Two chip splitters -SM3: Three chip splitters
