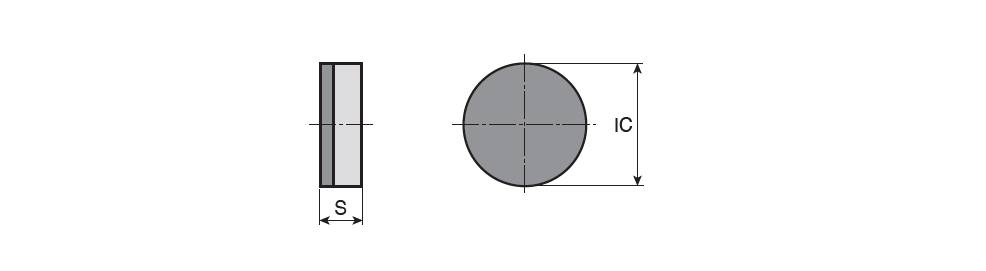

RNGN-FT (CBN) : Negative round type full top CBN inserts

Designation	d	t	alpha	a	ap (min)	ap (max)	ft (min)	ft (max)	CE	Precise	Utility	SC	ClssID	AN	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RNGN 090300 FT	9.52	3.18	0~	0.00~	0.10	1.00	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	0.0~	CBN ~	TB670 ~	1~	ISO$RN0903001NA$$00 ~	32 FT ~	RNGN ~	Y ~	9 ~	6210532	2	TB7015 TB670
RNGN 120300 FT	12.70	3.18	0~	0.00~	0.10	1.50	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	0.0~	CBN ~	TB7015~	1~	ISO$RN1203001NA$$00 ~	2 FT ~	RNG ~	Y ~	12 ~	6210533	1	TB7015
RNGN 120400 FT	12.70	4.76	0~	0.00~	0.10	1.50	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	0.0~	CBN ~	TB7015~	1~	ISO$RN1204001NA$$00 ~	3 FT ~	RNG ~	Y ~	12 ~	6341339	1	TB7015

FT : Full top CBN
SD : Solid CBN
