TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TESB-M-06 : High feed end mills with T-FLEXTEC modular adaptation and positive SBMT 06 of 4 cutting edges in max. ap 1.0 mm

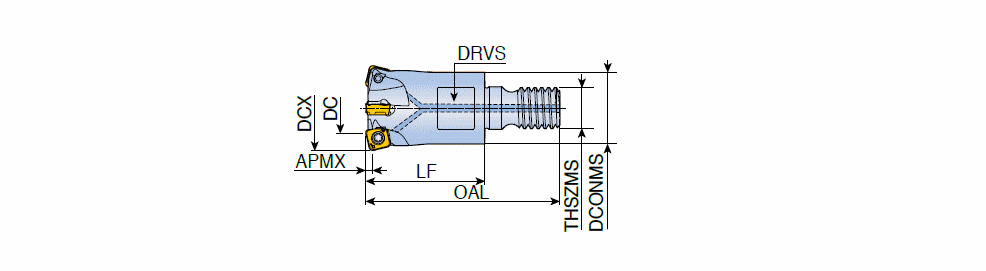

Designation	Tool sty	DCX	CICT	DC	DCONMS	LF	OAL	THSZMS	APMX	DRVS		S1	R/L	Rd	Arbor	PD	Insert	ClssID	MIID	KAPR	CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	ZNP	GICAT
TESB 216-M08-06	MODULAR ~	16.00	2	5.90	13.00	25.00	42.50	M08	1.00	10.0	0.03	6.00~	~	2.20~	~	RC ~	CF-SB06 ~	71E01A05D27A8 ~	SBMT 060310R-M	10.0~	SAI ~	02 ~	FF ~	IS$$621078819666359 ~	25.00~	0~	2~	2~	2~	6211396
TESB 320-M10-06	MODULAR ~	20.00	3	9.80	18.00	30.00	50.00	M10	1.00	15.0	0.12	6.00~	~	3.20~	~	RF ~	CF-SB06 ~	71E01A05D27A8 ~	SBMT 060310R-M	10.0~	SAI ~	02 ~	FF ~	IS$$621078819666359 ~	30.00~	0~	3~	3~	3~	6211397
TESB 425-M12-06	MODULAR ~	25.00	4	14.80	21.00	35.00	57.00	M12	1.00	17.0	0.09	6.00~	~	2.40~	~	RF ~	CF-SB06 ~	71E01A05D27A8 ~	SBMT 060310R-M	10.0~	SAI ~	02 ~	FF ~	IS$$621078819666359 ~	35.00~	0~	4~	4~	4~	6211398
TESB 532-M16-06	MODULAR ~	32.00	5	21.80	29.00	40.00	65.00	M16	1.00	25.0	0.20	6.00~	~	1.80~	~	F ~	CF-SB06 ~	71E01A05D27A8 ~	SBMT 060310R-M	10.0~	SAI ~	02 ~	FF ~	IS$$621078819666359 ~	40.00~	0~	5~	5~	5~	6211399
