TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TFMSB-R-06 : High feed face mills with positive SBMT 06 inserts of four cutting edges in max. ap 1.0 mm

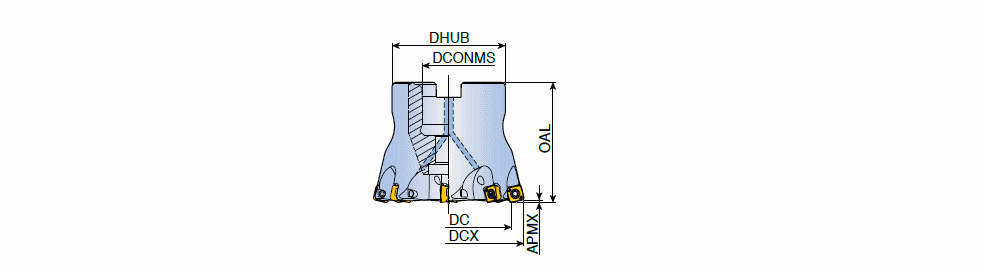

Designation	Tool sty	DCX	CICT	DC	DCONMS	DHUB	OAL	APMX	CSP	Arbor		Mtg. Ref	S1	Rd	R/L	PD	Insert	D Inner	Pocket	L1	FF/RN	KAPR	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFMSB 532-16R-06	FACE MILL ~	32.00	5	21.70	16.00	30.00	40.00	1.00	O ~	A	0.10	SH M8x25	6.00~	1.80~	~	F ~	CF-SB06 ~	0.00~	BMT 06 ~	0.00~	FF ~	10.0~	71E01A05B627B ~	SBMT 060310R-M	FDA ~	02 ~	IS$$621078819666359 ~	40.00~	5~	5~	5~	6211400
TFMSB 640-16R-06	FACE MILL ~	40.00	6	29.70	16.00	38.00	40.00	1.00	O ~	A	0.20	SH M8x25	6.00~	1.30~	~	XF ~	CF-SB06 ~	0.00~	BMT 06 ~	0.00~	FF ~	10.0~	71E01A05B627B ~	SBMT 060310R-M	FDA ~	02 ~	IS$$621078819666359 ~	40.00~	6~	6~	6~	6211401
TFMSB 750-22R-06	FACE MILL ~	50.00	7	39.70	22.00	45.00	50.00	1.00	O ~	A	0.40	SH M10x35	6.00~	1.00~	~	F ~	CF-SB06 ~	0.00~	BMT 06 ~	0.00~	FF ~	10.0~	71E01A05B627B ~	SBMT 060310R-M	FDA ~	02 ~	IS$$621078819666359 ~	50.00~	7~	7~	7~	6211402
TFMSB 863-22R-06	FACE MILL ~	63.00	8	52.70	22.00	47.00	50.00	1.00	O ~	A	0.60	SH M10x35	6.00~	0.70~	~	F ~	CF-SB06 ~	0.00~	BMT 06 ~	0.00~	FF ~	10.0~	71E01A05B627B ~	SBMT 060310R-M	FDA ~	02 ~	IS$$621078819666359 ~	50.00~	8~	8~	8~	6211403

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
