TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

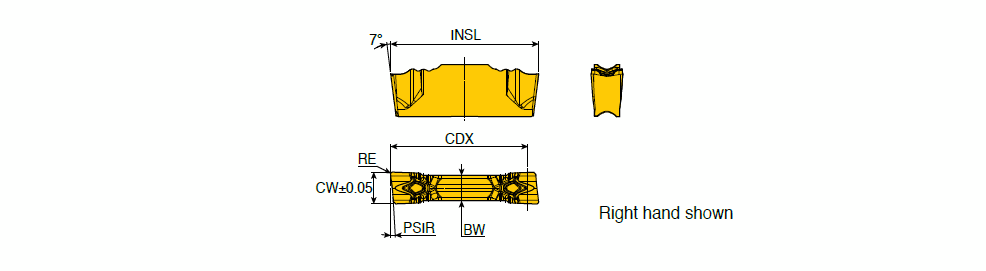

RDJ-R : Double-ended J-breaker handed type inserts with lead angle for parting of small dia. solid bar or tube to minimize pips or burrs on stainless steel and super alloys with sharp cutting edge

Designation	SSC	CW	RE	BW	INSL	PSIR	CDX	CWTOL	SC	R	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	CB	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RDJ 2-15R	2	2.00	0.20	1.70	14.00	15.0	13.00	0.050~	L ~	0.000~	0.03	0.08	~	2.00~	0.05~	71DDA089C8D1E ~	J ~	TT8020~	IS$$689252594363100 ~	6345741	2	TT8020 TT9080
RDJ 2-15RS	2	2.00	0.02	1.70	13.60	15.0	13.00	0.050~	L ~	0.000~	0.03	0.07	~	2.00~	0.05~	71DDA089C8D1E ~	J ~	TT7220~	IS$$689252594363100 ~	6310229	3	TT8020 TT7220 TT9080
RDJ 2-6R	2	2.00	0.20	1.70	14.00	6.0	13.00	0.050~	L ~	0.000~	0.03	0.08	~	2.00~	0.05~	71DDA089C8D1E ~	J ~	TT8020~	IS$$689252594363100 ~	6304863	2	TT8020 TT9080
RDJ 3-15R	3	3.00	0.20	2.40	14.00	15.0	13.00	0.050~	L ~	0.000~	0.03	0.12	~	3.00~	0.05~	71DDA089C8D1E ~	J ~	TT8020~	IS$$680695653612351 ~	6223718	2	TT8020 TT9080
RDJ 3-15RS	3	3.00	0.02	2.40	13.60	15.0	13.00	0.050~	L ~	0.000~	0.03	0.10	~	3.00~	0.05~	71DDA089C8D1E ~	J ~	TT7220~	IS$$680695653612351 ~	6223721	3	TT8020 TT7220 TT9080
RDJ 3-6R	3	3.00	0.20	2.40	14.00	6.0	13.00	0.050~	L ~	0.000~	0.03	0.12	~	3.00~	0.05~	71DDA089C8D1E ~	J ~	TT7220~	IS$$680695653612351 ~	6312543	3	TT8020 TT7220 TT9080
RDJ 3-6RS	3	3.00	0.02	2.40	13.60	6.0	13.00	0.050~	L ~	0.000~	0.03	0.10	~	3.00~	0.05~	71DDA089C8D1E ~	J ~	TT8020~	IS$$680695653612351 ~	6223724	1	TT8020
