TaeguTec Cutting Tools - Metal Working Tools - Turning -

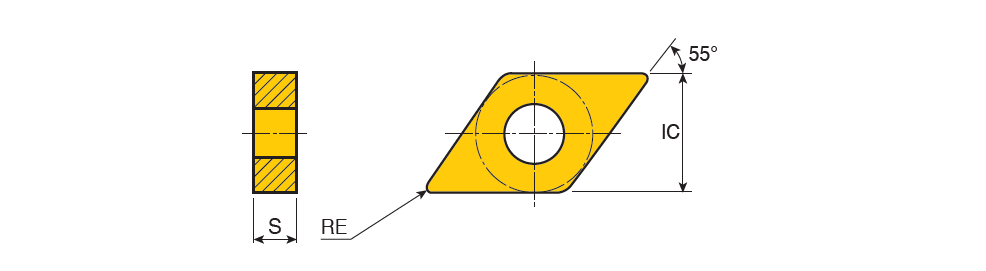

DNMM-RX : Single sided negative 55° rhombic inserts for semi heavy roughing of steel, stainless steel and cast iron with low cutting force

Designation	IC	S	RE	l	CB	alpha	a	ap (min)	ap (max)	ft (min)	ft (max)	CE	Precise	Utility	SC	ClssID	AN	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
DNMM 150612 RX	12.70	6.35	1.20	15.50~	RX ~	55~	0.00~	2.50	4.50	0.30	0.65	2~	~	U ~	D ~	71DD68D301C30 ~	0.0~	CVD ~	8125B ~	2~	ISO$DN1506122NB$$12 ~	443 RX ~	DNMM ~	Y ~	15 ~	6212368		1		TT8125B
DNMM 150616 RX	12.70	6.35	1.60	15.50~	RX ~	55~	0.00~	2.50	6.00	0.30	0.70	2~	~	U ~	D ~	71DD68D301C30 ~	0.0~	CVD ~	8115B ~	2~	ISO$DN1506162NB$$16 ~	444 RX ~	DNMM ~	Y ~	15 ~	6212377		1		TT8115B
