TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

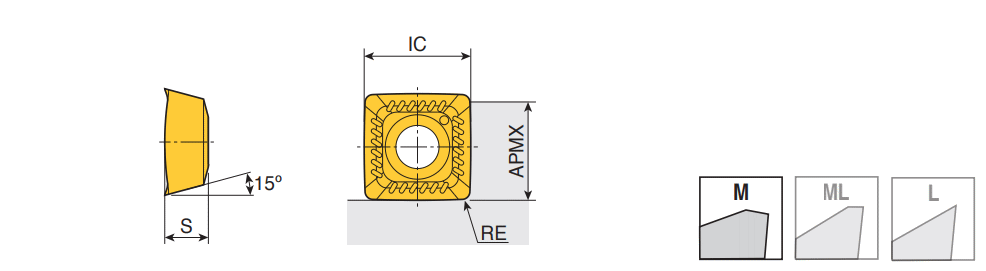

SVKT 11-M : Positive square inserts with 4 convex cutting edges & secure V-bottom for extended flute cutters on general purpose machining

Designation	IC	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CE	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SVKT 114508-M	11.00	4.50	0.80	10.00	11.00~	10.00	10.00	0.150	0.040	M7.5 ~	CVQ-SV11 ~	4~	S ~	71DD68D829217 ~	U60 ~	M ~	TT6080~	IS$$678247058514781 ~	SVKT 11 ~	0~	6246306		3		TT8080 TT9080 TT6080
