MXCSL 4.. : Head changeable solid carbide Lens shape heads with 4 flute for 5-axis profiling with high productivity & better surface finish

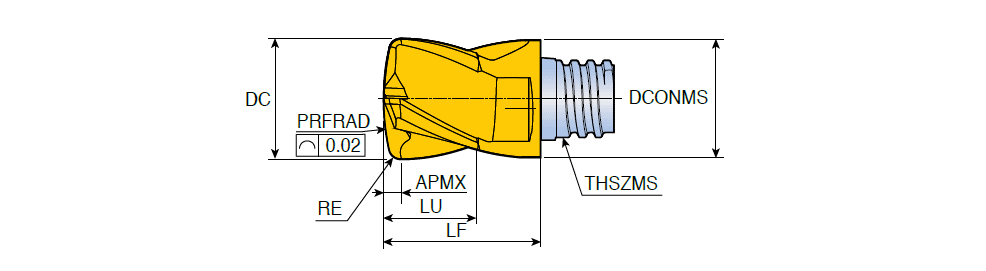

Designation	Tool sty	DC	PRFRAD	RE	APMX	LU	THSZMS	DCONMS	fz (min)	fz (max)	LF	H.A	Rd	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXCSL 4080R016-S05	HEAD TYPE ~	8.00	16.00	0.50	0.90	5.5	S05	7.70	0.020	0.080	10.00	0.0~	0.00~	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-12 ~	10.00~	10.00~	6224868	1	TT5523
MXCSL 4100R020-S06	HEAD TYPE ~	10.00	20.00	1.00	1.40	7.5	S06	9.70	0.030	0.090	13.00	0.0~	0.00~	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-12 ~	13.00~	13.00~	6224869	1	TT5523
MXCSL 4120R024-S08	HEAD TYPE ~	12.00	24.00	1.00	1.60	9.0	S08	11.70	0.030	0.100	16.50	0.0~	0.00~	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-12 ~	16.50~	16.50~	6224870	1	TT5523
MXCSL 4160R032-S10	HEAD TYPE ~	16.00	32.00	1.00	1.80	12.0	S10	15.30	0.040	0.120	20.50	0.0~	0.00~	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-12 ~	20.50~	20.50~	6224871	1	TT5523

Wrench should be ordered separately
