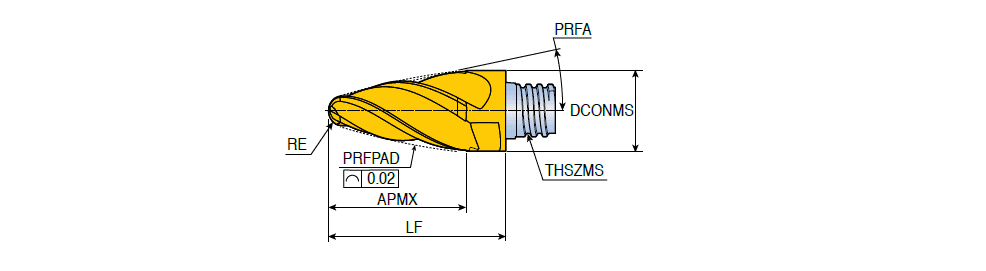

MXCSO 4.. : Head changeable solid carbide oval shape(barrel) heads with 4 flute for 5-axis profiling with high productivity

Designation	Tool sty	NOF	PRFRAD	RE	APMX	PRFA	THSZMS	DCONMS	fz (min)	fz (max)	LF	H.A	Rd	ClssID	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXCSO 4080R080-S05	HEAD TYPE ~	4~	80.00	1.50	14.20	12.00	S05	8.00	0.020	0.080	18.00	0.0~	0.00~	71E01A05D27A8 ~	TT5523~	303-12 ~	18.00~	18.00~	6224872	1	TT5523
MXCSO 4100R085-S06	HEAD TYPE ~	4~	85.00	2.00	16.50	12.00	S06	10.00	0.030	0.090	22.00	0.0~	0.00~	71E01A05D27A8 ~	TT5523~	303-12 ~	22.00~	22.00~	6224873	1	TT5523
MXCSO 4120R075-S08	HEAD TYPE ~	4~	75.00	2.00	21.30	12.00	S08	12.00	0.030	0.100	27.00	0.0~	0.00~	71E01A05D27A8 ~	TT5523~	303-12 ~	27.00~	27.00~	6224874	1	TT5523
MXCSO 4160R075-S10	HEAD TYPE ~	4~	75.00	3.00	27.00	12.00	S10	16.00	0.040	0.120	33.40	0.0~	0.00~	71E01A05D27A8 ~	TT5523~	303-12 ~	33.40~	33.40~	6224875	1	TT5523

Wrench should be ordered separately
