TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

TDR-2.5XD-CA (DIA 51-80) : Large diameter drills with cartridges, square inserts and setting plates for diameter adjustment in drilling depth of 2.5xD

Drilling depth: 2.5xdiameter

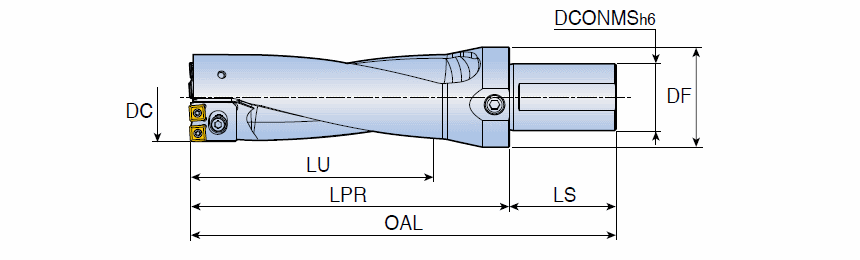

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	MIID	S1	d Range		Machines	Zeff	Shank	ClssID	CICT	DC	ULDR	CCFMS	CCTMS	IIC	LTA	GICAT
TDR 2551-53-50T2-07CA-T	INSERT TYPE ~	51.00	53.00	50.00	64.00	133.0	170.0	80.0	250.00	SPMG 07T308 DG	7.00~	51-53 ~	Y ~	~	1~	W ~	71E01A0608FE4 ~	4~	51.00~	2.00~	11 ~	ZYL ~	IS$$1427548118571160 ~	170.00~	3201935
TDR 2554-56-50T2-07CA-T	INSERT TYPE ~	54.00	56.00	50.00	64.00	140.0	180.0	80.0	260.00	SPMG 07T308 DG	7.00~	54-56 ~	Y ~	~	1~	W ~	71E01A0608FE4 ~	4~	54.00~	2.00~	11 ~	ZYL ~	IS$$1427548118571160 ~	180.00~	3201936
TDR 2557-62-50T2-09CA-T	INSERT TYPE ~	57.00	62.00	50.00	64.00	155.0	201.0	80.0	281.00	SPMG 090408 DG	9.00~	57-62 ~	Y ~	~	1~	W ~	71E01A0608FE4 ~	4~	57.00~	2.00~	11 ~	ZYL ~	IS$$1300230997598460 ~	201.00~	3201887
TDR 2563-66-50T2-09CA-T	INSERT TYPE ~	63.00	66.00	50.00	69.00	165.0	215.0	80.0	295.00	SPMG 090408 DG	9.00~	63-66 ~	Y ~	~	1~	W ~	71E01A0608FE4 ~	4~	63.00~	2.00~	11 ~	ZYL ~	IS$$1300230997598460 ~	215.00~	3201888
TDR 2567-73-50T2-11CA-T	INSERT TYPE ~	67.00	73.00	50.00	69.00	183.0	240.0	80.0	320.00	SPMG 110408 DG	11.00~	67-73 ~	Y ~	~	1~	W ~	71E01A0608FE4 ~	4~	67.00~	2.00~	11 ~	ZYL ~	IS$$856578178807232 ~	240.00~	3201865
TDR 2574-80-50T2-12CA-T	INSERT TYPE ~	74.00	80.00	50.00	74.00	200.0	250.0	80.0	330.00	SPMG 120408 DG	12.00~	74-80 ~	Y ~	~	1~	W ~	71E01A0608FE4 ~	4~	74.00~	2.00~	11 ~	ZYL ~	IS$$20506373226829 ~	250.00~	3201889
