TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

TDT-RS (Full radius-Ground) : Precision double-ended inserts for profiling, turning & grooving with low cutting force

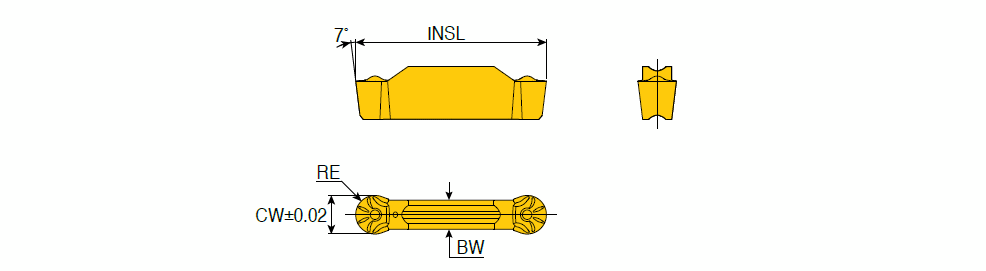

Designation	SSC	CW	RE	BW	INSL	SC	R	ft (min)	ft (max)	ap (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CB	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TDT 2.00E-1.00-RS	2	2.00	1.00	1.70	20.00	L ~	0.000~	0.10	0.22	1.00	0.08	0.15	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	PVD ~	RS ~	K10 ~	IS$$2313041858456346 ~	6224643	3	TT9080 TT3010 K10
TDT 3.00E-1.50-RS	3	3.00	1.50	2.40	20.00	L ~	0.000~	0.15	0.28	1.50	0.09	0.18	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	3~	PVD ~	RS ~	K10 ~	IS$$2747605741983180 ~	6343022	3	TT9080 TT3010 K10
TDT 4.00E-2.00-RS	4	4.00	2.00	3.00	20.00	L ~	0.000~	0.18	0.35	2.00	0.10	0.20	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	4~	PVD ~	RS ~	K10 ~	IS$$2373158593875300 ~	6343023	3	TT9080 TT3010 K10
TDT 5.00E-2.50-RS	5	5.00	2.50	4.00	25.00	L ~	0.000~	0.25	0.54	2.50	0.13	0.23	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	5~	PVD ~	RS ~	K10 ~	IS$$2147126518071528 ~	6343024	3	TT9080 TT3010 K10
TDT 6.00E-3.00-RS	6	6.00	3.00	5.00	25.00	L ~	0.000~	0.30	0.67	3.00	0.15	0.27	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	6~	PVD ~	RS ~	K10 ~	IS$$2181971322726440 ~	6309177	3	TT9080 TT3010 K10
