TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

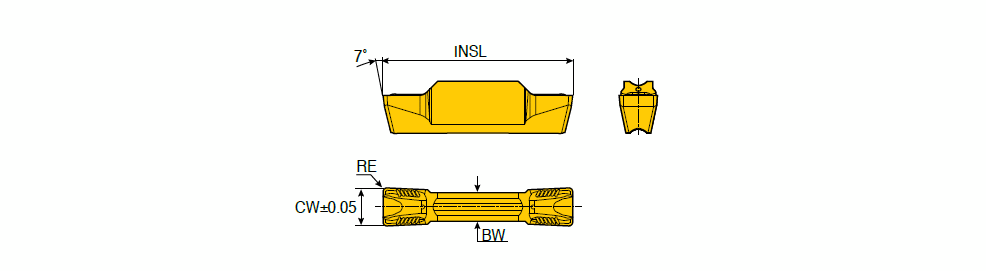

TDXY-E : Double-ended pressed type multi functional inserts for external/internal/face grooving/turning especially suitable for high feed side turning & face grooving

Designation	SSC	CW	RE	BW	INSL	h	S1	SC	R	ft (min)	ft (max)	ap (min)	ap (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CB	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TDXY 3E-0.4	3	3.00	0.40	2.20	20.00	0.0~	0.00~	L ~	0.000~	0.17	0.20	0.50	1.80	0.06	0.18	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	Cermet ~	XY ~	CT3000~	IS$$2056821345919082 ~	6323879	4	TT9080 TT3010 TT6080 CT3000
TDXY 4E-0.4	4	4.00	0.40	3.00	20.00	0.0~	0.00~	L ~	0.000~	0.20	0.27	0.50	2.40	0.07	0.20	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	Cermet ~	XY ~	CT3000~	IS$$1539718134533175 ~	6323667	4	TT9080 TT3010 TT6080 CT3000
TDXY 4E-0.8	4	4.00	0.80	3.00	20.00	0.0~	0.00~	L ~	0.000~	0.22	0.27	1.00	2.40	0.07	0.20	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	PVD ~	XY ~	TT3010~	IS$$1539718134533175 ~	6402505	3	TT9080 TT3010 TT6080
TDXY 5E-0.4	5	5.00	0.40	4.00	25.00	0.0~	0.00~	L ~	0.000~	0.22	0.32	0.50	3.00	0.08	0.23	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	PVD ~	XY ~	TT3010~	IS$$983758445705840 ~	6323820	3	TT9080 TT3010 TT6080
TDXY 5E-0.8	5	5.00	0.80	4.00	25.00	0.0~	0.00~	L ~	0.000~	0.25	0.37	1.00	3.00	0.08	0.23	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	PVD ~	XY ~	TT3010~	IS$$983758445705840 ~	6322077	3	TT9080 TT3010 TT6080
TDXY 6E-0.4	6	6.00	0.40	5.00	25.00	0.0~	0.00~	L ~	0.000~	0.25	0.38	0.50	3.60	0.12	0.35	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	PVD ~	XY ~	TT3010~	IS$$884964253522797 ~	6304572	3	TT9080 TT3010 TT6080
TDXY 6E-0.8	6	6.00	0.80	5.00	25.00	0.0~	0.00~	L ~	0.000~	0.26	0.42	1.00	3.60	0.12	0.35	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	PVD ~	XY ~	TT3010~	IS$$884964253522797 ~	6304573	3	TT9080 TT3010 TT6080
