Home Page > Milling & Solid End mills > > 3P-TCF 45-S-04

Milling & Solid End mills
Main Application

Related Insert Related Holder

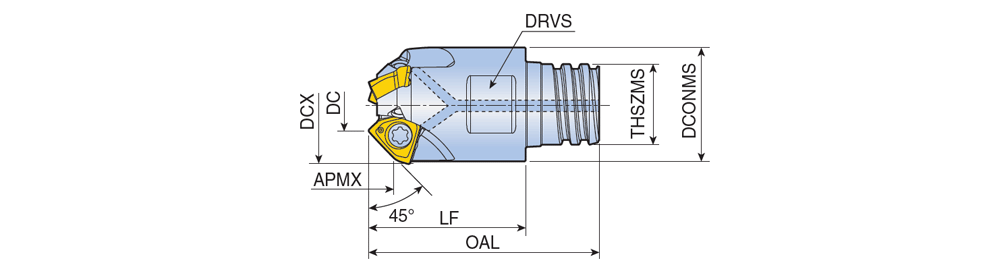

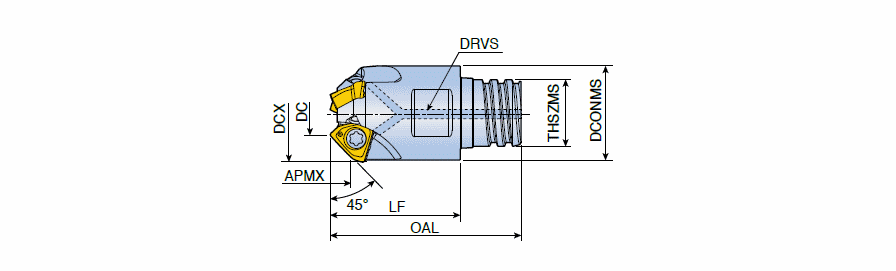

3P-TCF 45-S-04 : Modular head for 45° chamfering with MAXIRUSH adaptation & 3 no. of 3PK(H)T 04 inserts

Designation	Tool sty	CICT	DCX	DC	DCONMS	LF	OAL	THSZMS	APMX	DRVS		S1	Rd	PD		Insert	ClssID	MIID	K	CCTMS	CCFMS	IIC	LTA	GICAT	GIREM	giic	GICODE
3P-TCF45-306-S08-04	MODULAR ~	3	12.30	6.00	11.60	16.00	23.50	S08	2.50	10.0	O ~	4.00~	0.00~	F ~	0.01	3PKT 040202R-M ~	71E01A05D27A8 ~	3PKT 040202R-M	45.0~	SAI ~	01 ~	IS$$747441900519104 ~	16.00~	6229337		0
