TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

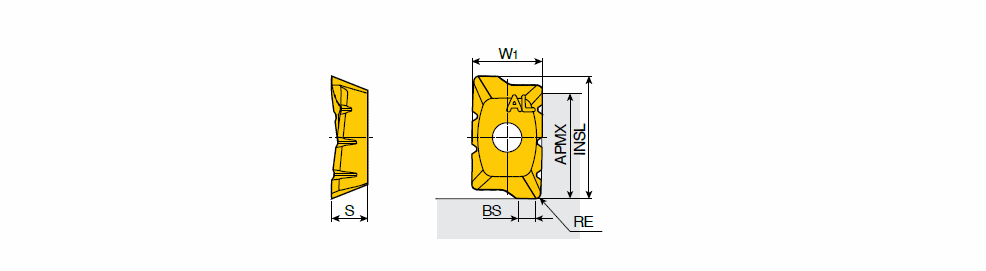

APCT 1705 PER-SAL : Positive chip splitter APCT 17 inserts with sharp helical cutting edges for aluminum machining in 90° shoulders

Designation	INSL	W1	S	APMX	BS	RE	S1	S2	CE	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	apmax MF	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
APCT 1705 PER-SAL	18.50	10.80	5.62	16.10	2.56	0.80	17.00~	~	0~	~	0.500	0.100	4.50	13.00	~	~	G10-CS ~	3.90~	~	0~	K10 ~	IS$$739566412056745 ~	APCT 17 ~	0~	6231560		1		K10
