TaeguTec Cutting Tools - Metal Working Tools - Turning -

QH-HCLNR/L (RHINO) : Exchangeable Hook lever RHINOTURN boring heads with 80° CN..0904..inserts & 95° approach angle for anti-vibration deep boring machining

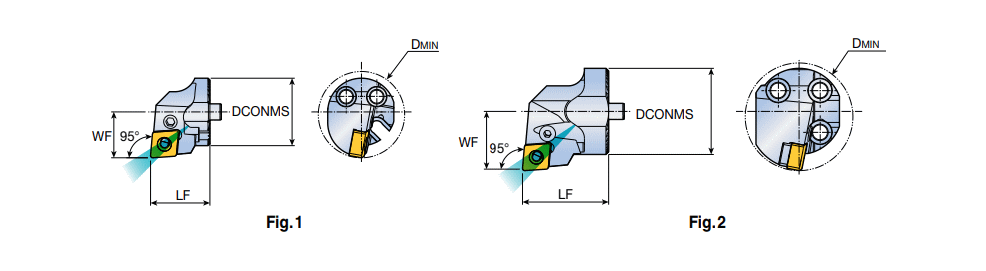

Designation	DCONMS	LF	WF	DMIN	Fig.		HAND	d	t	Kr	K	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	IIC_2	IIC_3	GICAT
QH25-HCLNL-0904	25.00	22.00	17.00	32.00	1	O ~	L ~	9.52~	4.76~	95~	95.0~	HOOK LEVER ~	ADAPTER ~	71E01A0E9CBA9 ~	CNMG 090408 PC	CMS ~	01 ~	22.00~	IS$$1725095954716036 ~	IS$$1861966634141122 ~	IS$$1994863254591953 ~	6231855
QH25-HCLNR-0904	25.00	22.00	17.00	32.00	1	O ~	R ~	9.52~	4.76~	95~	95.0~	HOOK LEVER ~	ADAPTER ~	71E01A0E9CBA9 ~	CNMG 090408 PC	CMS ~	01 ~	22.00~	IS$$1725095954716036 ~	IS$$1861966634141122 ~	IS$$1994863254591953 ~	6231854
QH32-HCLNL-0904	32.00	32.00	22.00	40.00	2	O ~	L ~	9.52~	4.76~	95~	95.0~	HOOK LEVER ~	ADAPTER ~	71E01A0E9CBA9 ~	CNMG 090408 PC	CMS ~	01 ~	32.00~	IS$$1725095954716036 ~	IS$$1861966634141122 ~	IS$$1994863254591953 ~	6231857
QH32-HCLNR-0904	32.00	32.00	22.00	40.00	2	O ~	R ~	9.52~	4.76~	95~	95.0~	HOOK LEVER ~	ADAPTER ~	71E01A0E9CBA9 ~	CNMG 090408 PC	CMS ~	01 ~	32.00~	IS$$1725095954716036 ~	IS$$1861966634141122 ~	IS$$1994863254591953 ~	6231856
