TaeguTec Cutting Tools - Metal Working Tools - Turning -

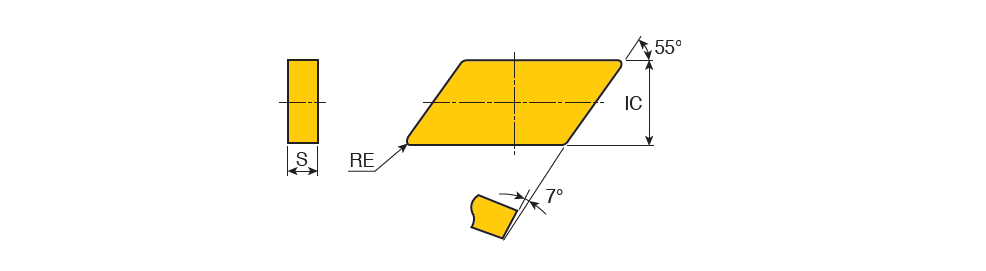

KNUX R/L-11 : Negative single-side 55° Parallelogram inserts for profiling with positive cutting edges

Right handed shown

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	HAND	S2	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
KNUX 160405 L11	9.52	4.76	0.50	19.72~	11 ~	55~	0.00~	1.50	5.00	0.15	0.35	4~	~	U ~	K ~	L ~	R ~	71DD68D966F52 ~	CVD ~	8115B ~	2~	ISO$KN1604052LA$$05 ~	3331 L ~	KNUX ~	Y ~	16 ~	6212224	5	P30 TT9225 TT5100 TT8125B TT8115B
KNUX 160405 R11	9.52	4.76	0.50	19.72~	11 ~	55~	0.00~	1.50	5.00	0.15	0.35	4~	~	U ~	K ~	R ~	L ~	71DD68D966F52 ~	CVD ~	8115B ~	2~	ISO$KN1604052RA$$05 ~	3331 R ~	KNUX ~	Y ~	16 ~	6213098	10	TT8020 TT7100 TT8135B P30 TT9225 TT5100 TT8125B TT8115B K20 TT7005
KNUX 160410 L11	9.52	4.76	1.00	19.72~	11 ~	55~	0.00~	2.00	5.00	0.21	0.45	4~	~	U ~	K ~	L ~	R ~	71DD68D966F52 ~	CVD ~	8115B ~	2~	ISO$KN1604102LA$$10 ~	3332 L ~	KNUX ~	Y ~	16 ~	6212255	3	TT5100 TT8125B TT8115B
KNUX 160410 R11	9.52	4.76	1.00	19.72~	11 ~	55~	0.00~	1.50	5.00	0.15	0.35	4~	~	U ~	K ~	R ~	L ~	71DD68D966F52 ~	CVD ~	8115B ~	2~	ISO$KN1604102RA$$10 ~	3332 R ~	KNUX ~	Y ~	16 ~	6212236	5	TT9225 TT5100 TT8125B TT8115B TT7015

Click the Better Suggestions icon to see more choices.
