QH-STFCR/L (RHINO) : Exchangeable screw type boring heads with 60° TC..1102/16T3 triangular inserts & 91° approach angle for anti-vibration deep boring machining

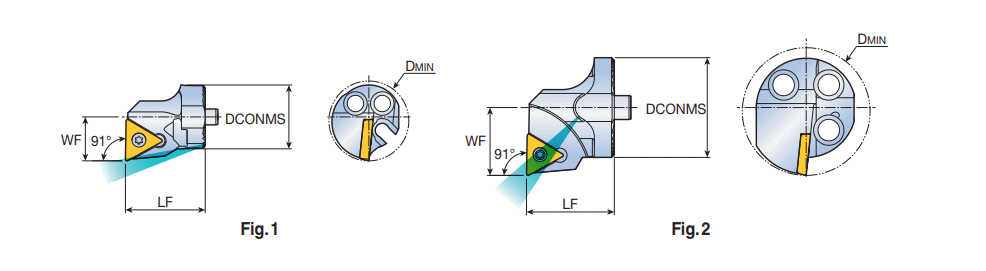

Designation	DCONMS	LF	WF	DMIN	Fig.		HAND	d	t	Kr	K	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	IIC_2	GICAT
QH16-STFCL-1102	16.00	20.00	11.00	20.00	1	O ~	L ~	6.35~	2.38~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 110204 MT	CMS ~	01 ~	20.00~	IS$$410568644593476 ~	IS$$500562293307948 ~	6231849
QH16-STFCR-1102	16.00	20.00	11.00	20.00	1	O ~	R ~	6.35~	2.38~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 110204 MT	CMS ~	01 ~	20.00~	IS$$410568644593476 ~	IS$$500562293307948 ~	6231848
QH20-STFCL-1102	20.00	20.00	13.00	25.00	2	O ~	L ~	6.35~	2.38~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 110204 MT	CMS ~	01 ~	20.00~	IS$$410568644593476 ~	IS$$500562293307948 ~	6231851
QH20-STFCR-1102	20.00	20.00	13.00	25.00	2	O ~	R ~	6.35~	2.38~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 110204 MT	CMS ~	01 ~	20.00~	IS$$410568644593476 ~	IS$$500562293307948 ~	6231850
QH25-STFCL-1102	25.00	22.00	17.00	32.00	2	O ~	L ~	6.35~	2.38~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 110204 MT	CMS ~	01 ~	22.00~	IS$$410568644593476 ~	IS$$500562293307948 ~	6230419
QH25-STFCR-1102	25.00	22.00	17.00	32.00	2	O ~	R ~	6.35~	2.38~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 110204 MT	CMS ~	01 ~	22.00~	IS$$410568644593476 ~	IS$$500562293307948 ~	6230418
QH32-STFCL-16	32.00	32.00	22.00	40.00	2	O ~	L ~	9.52~	3.97~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 16T308 MT	CMS ~	01 ~	32.00~	IS$$475366154239096 ~	~	6230417
QH32-STFCR-16	32.00	32.00	22.00	40.00	2	O ~	R ~	9.52~	3.97~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 16T308 MT	CMS ~	01 ~	32.00~	IS$$475366154239096 ~	~	6230416
QH40-STFCL-16	40.00	38.00	27.00	50.00	2	O ~	L ~	9.52~	3.97~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 16T308 MT	CMS ~	01 ~	38.00~	IS$$475366154239096 ~	~	6230415
QH40-STFCR-16	40.00	38.00	27.00	50.00	2	O ~	R ~	9.52~	3.97~	91~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TCMT 16T308 MT	CMS ~	01 ~	38.00~	IS$$475366154239096 ~	~	6230414

When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
