Home Page > Turning > > QE1B SVXCR-TB

Turning
Main Application

More Info Related Insert Related Holder Accessories

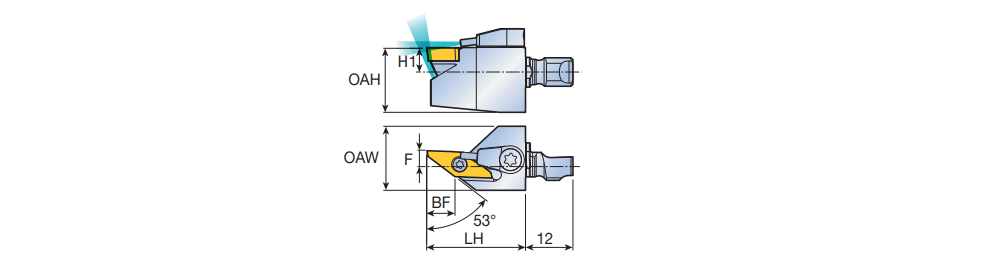

QE1B SVXCR-TB : Modular head for external back turning with high-pressure coolant on Swiss machines

Designation	OAH	LH	OAW	BF	H1	F	d	t	Kr	K	CL	Tool typ	HAND	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	GICAT	GIREM	giic	GICODE
QE1B SVXCR 11-TB	16.2	25.0	16.20	7.2	6.000	3.00	6.35~	3.18~	0~	93.0~	SCREW ~	MODULAR ~	R ~	71E01A0EAF067 ~	BT(D)VC 110301F1R	IMC ~	16 ~	25.00~	IS$$230156166072420 ~	6229331		0
